2MBI50P-140

2MBI50P-140, IGBT module, 50 A, 1400 V, 400 W, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $45.00~65.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	65.00 / Piece
11 ~ 100 :	55.00 / Piece
101 ~ 1000 :	45.00 / Piece

PartNumber:: 2MBI50P-140

Brand:: FUJI electric - FUJI | D/C: 14+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-27

From Other Seller

Part Number:2MBI50P-140
US $45.00 - 65.00
Quantity:

piece

Product Summary

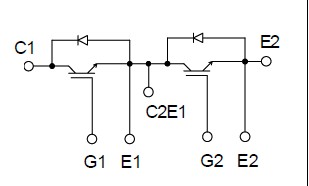

The 2MBI50P-140 is an IGBT module. Applications are (1)General purpose inverter; (2)AC and DC Servo drive amplifier; (3)Uninterruptible power supply.

Parametrics

2MBI50P-140 absolute maximum ratings: (1)Collector-emitter voltage: 1400 V; (2)Gate-emitter voltage: ±20 V; (3)Collector current IC continuous Tc=25°C: 75 A; Tc=80°C: 50 A; ICp 1ms Tc=25°C: 150 A; Tc=80°C: 100 A; -IC: 50 A; -IC pulse: 100 A; (4)Collector Power Dissipation PC: 400 W; (5)Junction temperature Tj: +150 ℃; (6)Storage temperature Tstg: -40 to +125 ℃; (7)Isolation voltage between terminal and copper base Viso: 2500 VAC; (8)Screw Torque Mounting: 3.5 N·m; Terminals: 3.5 N·m.

Features

2MBI50P-140 features: (1)Small temperature dependence of the turn-off switching loss; (2)Easy to connect in parallel; (3)Wide RBSOA (square up to 2 time of rated current)and high shortcircuit withstand capability; (4)Low loss and soft-switching (reduction of EMI noise).
