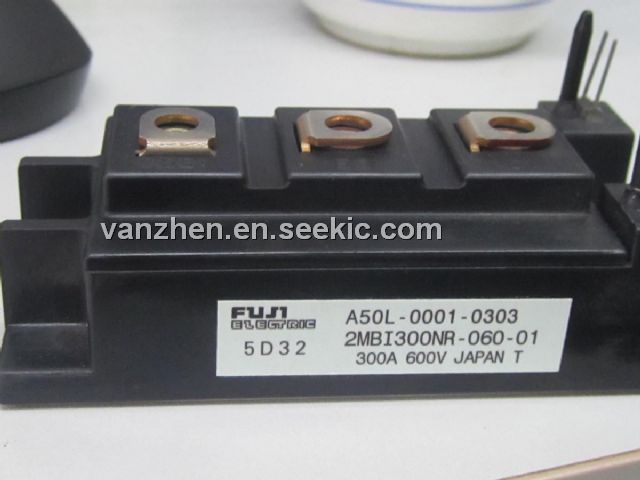

Product Summary

The 2MBI300NR-060-01 is an IGBT Module. The applications of the 2MBI300NR-060-01 include Inverter for Motor drive, AC and DC Servo drive amplifier, Uninterruptible power supply, Industrial machines, such as Welding machines.

Parametrics

2MBI300NR-060-01 absolute maximum ratings: (1)Collector-Emitter voltage, VCES: 600 V; (2)Gate-Emitter voltage, VGES: ±20 V; (3)Collector current Continuous, IC: 300 A; (4)Max. power dissipation, PC: 1100 W; (5)Operating temperature, Tj: +150 ℃; (6)Storage temperature, Tstg: -40 to +125 ℃; (7)Isolation voltage, Vis: AC 2500 (1min.) V; (8)Screw torque, Mounting: 3.5 N·m.

Features

2MBI300NR-060-01 features: (1)VCE(sat) classified for easy parallel connection; (2)High speed switching; (3)Voltage drive; (4)Low inductance module structure.

Diagrams

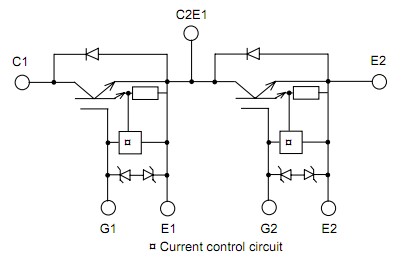

2MBI300NR-060-01 block diagram
