Product Summary
The 2mbi200pb-140 is a P series IGBT module. Applications of the 2mbi200pb-1 include: general purpose inverters, AC servo systems (drive unit) , UPS (uninterruptible power supply) .
Parametrics
2mbi200pb-140 absolute maximum ratings: (1) collector-emitter voltage VCES: 1400V; (2) gate-emitter voltage VGES: ±20V; (3) Collector current, Continuous Ic: 300A (Tc=25°C) , 200A (Tc=80°C) , 600A (Tc=25°C, 1ms, I pulse) , 400A (Tc=80°C, Ic pulse) ; (3) Max power dissipation Pc: 1500W; (4) operating temperature Tj: +150°C; (5) storage temperature Tstg: -40 to +125°C; (6) Isolation voltage Vis: 2500V AC (1 min.) .
Features
2mbi200pb-140 features: (1) small temperature dependence of the turn-off switching loss; (2) easy to connect in parallel; (3) wide RBSOA (square up to 2 times of rated current) and high short-circuit withstand capability; (4) low loss and soft-switching (reduction of EMI noise) .

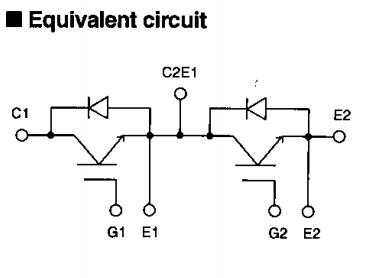

Diagrams
