Product Summary

The 2MBI100F-120 is an IGBT module. Applications are (1)Inverter for motor drive; (2)AC and DC servo drive amplifier; (3)Uninterruptible power supply; (4)Industrial machines, such as welding machines.

Parametrics

2MBI100F-120 absolute maximum ratings: (1)Collctor-emitter voltage, VCES: 1200V; (2)Gate-emitter voltage: ±20V; (3)Collector current continuous IC: 100 A,1ms IC pulse: 200 A,continuous -IC: 100 A,1ms -IC pulse: 200 A; (4)Max.power dissipation: 720W; (5)Operating temperature: 150℃;(6)Storage temperature Tstg: -40 to +125 °C; (7)Isolation voltage A.C. 1min. Vis: 2500 V; (8)Screw torque mounting 1: 3.5 N·m(kg·cm); Terminals 1: 3.5 N·m(kg·cm).

Features

2MBI100F-120 features: (1)High speed switching; (2)Voltage drive; (3)Variety of power capacity series.

Diagrams

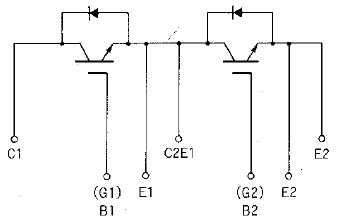

2MBI100F-120 pin connection
