Product Summary

The 1MBI400NA-120 is an IGBT module. The applications of the QM400HA-2H include High Power Switching, A.C. Motor Controls, D.C. Motor Controls, Uninterruptible Power Supply.

Parametrics

1MBI400NA-120 absolute maximum ratings: (1)Collector-Emitter Voltage VCES: 1200 V; (2)Gate -Emitter Voltage VGES: ± 20 V; (3)Continuous IC: 400A; (4)Collector 1ms IC PULSE: 800A; (5)Current Continuous -IC: 400A; (6)1ms -IC PULSE: 800A; (7)Max. Power Dissipation PC: 3100 W; (8)Operating Temperature Tj: +150℃; (9)Storage Temperature Tstg: -40 to +125℃.

Features

1MBI400NA-120 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Less Total Power Dissipation; (4)Improved FWD Characteristic; (5)Minimized Internal Stray Inductance; (6)Overcurrent Limiting Function (4~5 Times Rated Current).

Diagrams

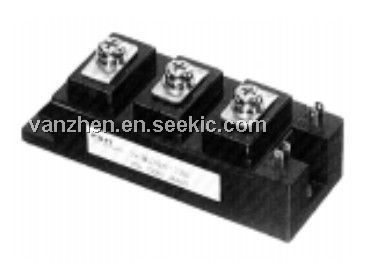

1MBI400NA-120 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
1MBI400NA-120
1MBI400NA-120

Other


Data Sheet

Negotiable
