Product Summary

The V300C15C150AL is a DC-DC Converter Module. The V300C15C150AL uses 2nd Generation power processing, control and packaging technologies to provide the performance, flexibility and cost effectiveness expected of a mature power component. For example, a plated-cavity core transformer couples widely separated primary and secondary windings, resulting in low in-toout parasitic capacitance and noise. High frequency ZCS/ZVS switching, advanced power semiconductor packaging and thermal management provide high power density with low temperature gradients. Extensive use of silicon integration results in 1/3 the part count of a 1st Generation converter.

Parametrics

V300C15C150AL absolute maximum ratings: (1)+In to –In voltage: -0.5 to +375 Vdc; (2)+In to –In voltage: 400 V; (3)PC to –In voltage: -0.5 to +7.0 V; (4)PR to –In voltage: -0.5 to +7.0 V; (5)+Out to –Out voltage: -0.5 to +20 V; (6)SC to –Out voltage: -0.5 to +1.5 V; (7)Isolation voltage (in to out): 3000 V; (8)Isolation voltage (in to base): 1550 V; (9)Isolation voltage (out to base): 500 V; (10)Storage temperature (C–Grade): -40 to +125 ℃; (11)Operating temperature (C–Grade): -20 to +100 ℃.

Features

V300C15C150AL features: (1)DC input range: 180 - 375V; (2)Input surge withstand: 400V for 100ms; (3)DC output: 15V; (4)Programmable output: 10 to 110%; (5)Regulation: ±0.2% no load to full load; (6)Efficiency: 86.5%; (7)Maximum operating temperature: 100℃ at full load; (8)Power density: 91W/cubic inch; (9)Height above board: 0.43 in. (10,9 mm); (10)Parallelable, with N+M fault tolerance; (11)Low noise ZCS/ZVS architecture.

Diagrams

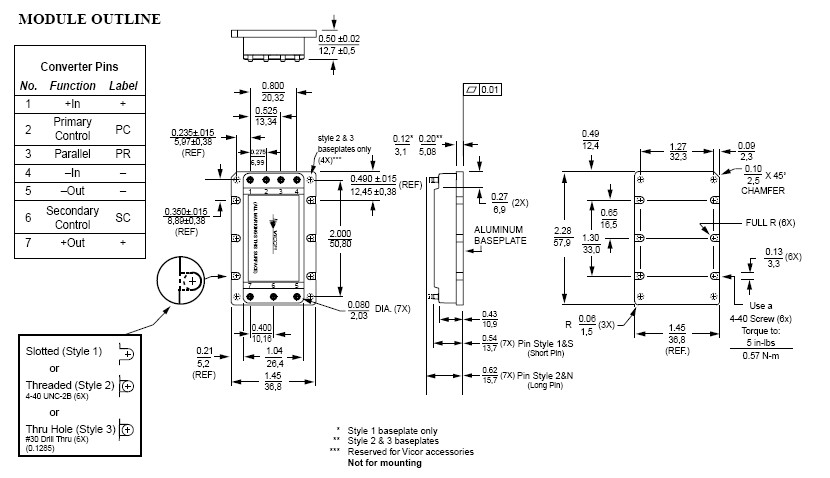

V300C15C150AL dimension
