Product Summary
The VI-JWL-IZ is a DC-DC Converter. The VI-JWL-IZ established a new standard in component-level DC-DC converter. This “junior” size complement to the higher power VI-200 family offers up to 100 W of isolated and regulated power in a board mounted package. With thousands of input/output/power combinations, and with a maximum operating temperature rating of 100℃, the MiniMod provides nearly unlimited flexibility for power system designers to meet demanding time to market requirements.
Parametrics
VI-JWL-IZ absolute maximum ratings: (1)Inrush charge: 60x 10-6 Coulomb; (2)No load power dissipation: 1.35 to 2 W; (3)Total remote sense compensation: 0.5 V; (4)Gate in low current: 6 mA.
Features
VI-JWL-IZ features: (1)RoHS compliant (VE versions); (2)Up to 50 Watts per cubic inch; (3)CE Marked; (4)Up to 90% efficiency; (5)Remote sense and current limit; (6)Logic disable; (7)Wide range output adjust; (8)ZCS power architecture; (9)Low noise FM control; (10)Isolated output.

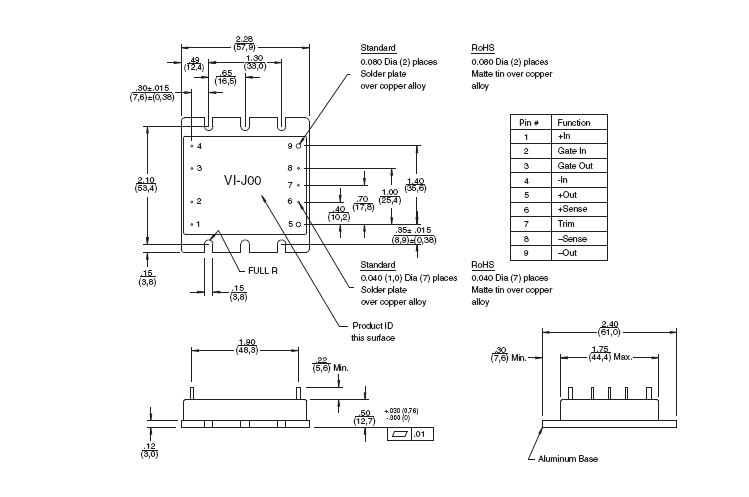

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 VI-JWL-IZ |
|
CONVERTER MOD DC/DC 28V 25W |
Data Sheet |
|
|
||||||
|
VI-JWL-IZ-B1 |
|
CONVERTER MOD DC/DC 28V 25W |
Data Sheet |
|
|
||||||
|
VI-JWL-IZ-F1 |
|
CONVERTER MOD DC/DC 28V 25W |
Data Sheet |
|
|
||||||
|
VI-JWL-IZ-F2 |
|
CONVERTER MOD DC/DC 28V 25W |
Data Sheet |
|
|
||||||
|
VI-JWL-IZ-F3 |
|
CONVERTER MOD DC/DC 28V 25W |
Data Sheet |
|
|
||||||
|
VI-JWL-IZ-F4 |
|
CONVERTER MOD DC/DC 28V 25W |
Data Sheet |
|
|
||||||
|
VI-JWL-IZ-S |
|
CONVERTER MOD DC/DC 28V 25W |
Data Sheet |
|
|
||||||
