Product Summary

The LW015C91 is a low-profile, dc-dc converter. The L Single- and Dual-Output-Series Power Modules are low-profile, dc-dc converters that operate over an input voltage range of 18 Vdc to 36 Vdc or 36 Vdc to 75 Vdc and provide one or two precisely regulated outputs. The outputs are isolated from the input, allowing versatile polarity configurations and grounding connections. The modules have a maximum power rating of 10 W to 15 W and efficiencies of up to 84% for a 5 V output and 82% for a 3.3 V output. Built-in filtering for both input and output minimizes the need for external filtering. The applications of the LW015C91 include Telecommunications, Distributed power architectures, Private branch exchange (PBX) and Voice and data multiplexing.

Parametrics

LW015C91 absolute maximum ratings: (1)Input Voltage: 50 V; (2)Operating Case Temperature (See Derating Curves, Figures 43—45.): 105 ℃; (3)Storage Temperature: –55 to 125 ℃; (4)I/O Isolation: 1500 V.

Features

LW015C91 features: (1)Wide input voltage range: 18 Vdc to 36 Vdc or 36 Vdc to 75 Vdc; (2)Output current limiting, unlimited duration; (3)Output overvoltage clamp; (4)Under voltage lockout; (5)Input-to-output isolation: 1500 V; (6)Operating case temperature range: -40 to +105 ℃; (7)CE mark meets 73/23/EEC and 93/68/EEC directives Within FCC and VDE Class A radiated limits.

Diagrams

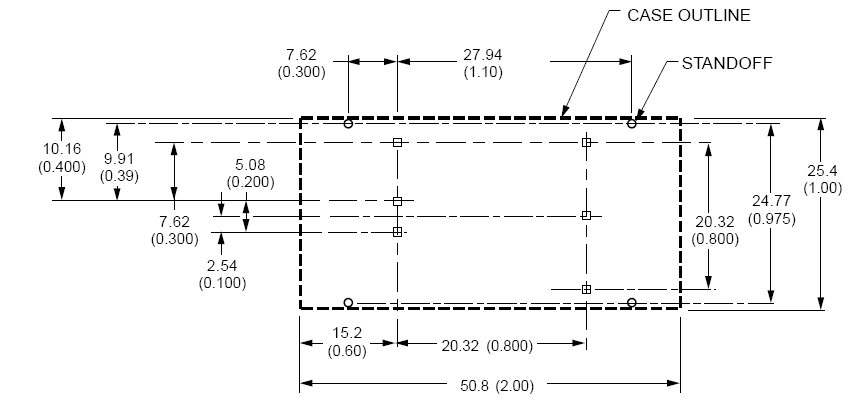

LW015C91 dimension
