Product Summary

The stp80nf10fp is a Low gate charge STripFET.II power mosfet. The stp80nf10fp realized with STMicroelectronics unique STripFET process has specifically been designed to minimize input capacitance and gate charge. It is therefore suitable as primary switch in advanced high-efficiency isolated DC-DC converters for Telecom and Computer application. It is also intended for any application with low gate charge drive requirements. The applications of the stp80nf10fp include high-efficiency dc-dc converters and UPS and motor control.

Parametrics

stp80nf10fp absolute maximum ratings: (1)Drain-source Voltage: 100 V; (2)Drain-gate Voltage: 100 V; (3)Gate- source Voltage: ±20 V; (4)Drain Current (continuous) at TC = 25℃: 38 A; (5)Drain Current (continuous) at TC = 100℃: 27 A; (6)Drain Current (pulsed): 152 A; (7)Total Dissipation at TC = 25℃: 45 W.

Features

stp80nf10fp features: (1)Typical RDS(on) = 0.012W; (2)Exceptional dv/dt capability; (3)100% avalanche tested; (4)Application oriented characterization.

Diagrams

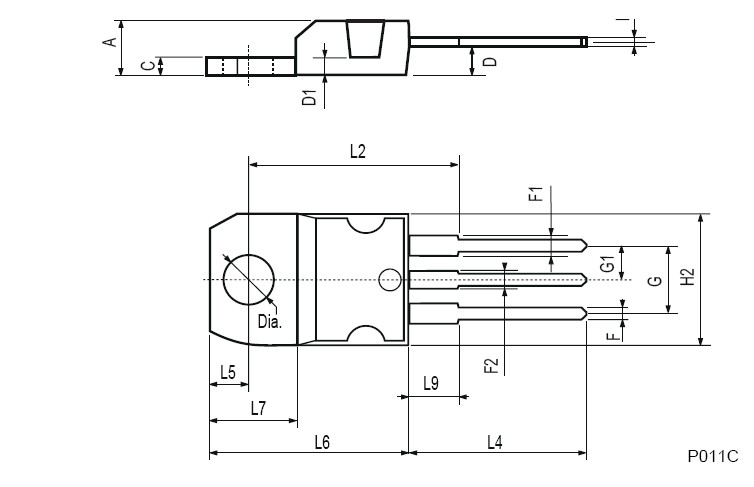

stp80nf10fp dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
STP80NF10FP
STP80NF10FP
STMicroelectronics
MOSFET N Ch 100V 0.012 Ohm 30A
Data Sheet
0-1: $1.83
1-10: $1.51
10-100: $1.35
100-250: $1.21
