Product Summary

The FPF1006 is a low RDS P-channel MOSFET load switch with CMOS controlled turn-on targeting small package load switch applications. The input voltage range operates from 1.2V to 5.5V. Switch control is by a logic input (ON) capable of interfacing directly with low voltage control signals. Optional on-chip load resistor is added for output quick discharge when switch is turned off. Both FPF1006 is available in a small 2X2 MLP- 6 pin plastic package. Applications are (1)PDAs; (2)Cell phones; (3)GPS devices; (4)MP3 players; (5)Digital cameras; (6)Peripheral ports; (7)Hot swap supplies.

Parametrics

FPF1006 absolute maximum ratings: (1)VIN, VOUT, ON to GND: -0.3 to 6 V; (2)Maximum continuous switch current: 1.5 A; (3)Power dissipation @ TA = 25°C (Note 1): 1.2 W; (4)Storage junction temperature: -65 to 150 °C; (5)Operating temperature range: -40 to 85 °C; (6)Thermal resistance, junction to ambient: 86 °C/W; (7)Electrostatic discharge protection HBM: 2000 V; MM: 200 V.

Features

FPF1006 features: (1)1.2 to 5.5V input voltage range; (2)Typical RDS(ON)= 50mΩ @ VIN = 5.5V; (3)Typical RDS(ON)= 55mΩ @ VIN = 3.3V; (4)ESD protected, above 2000V HBM.

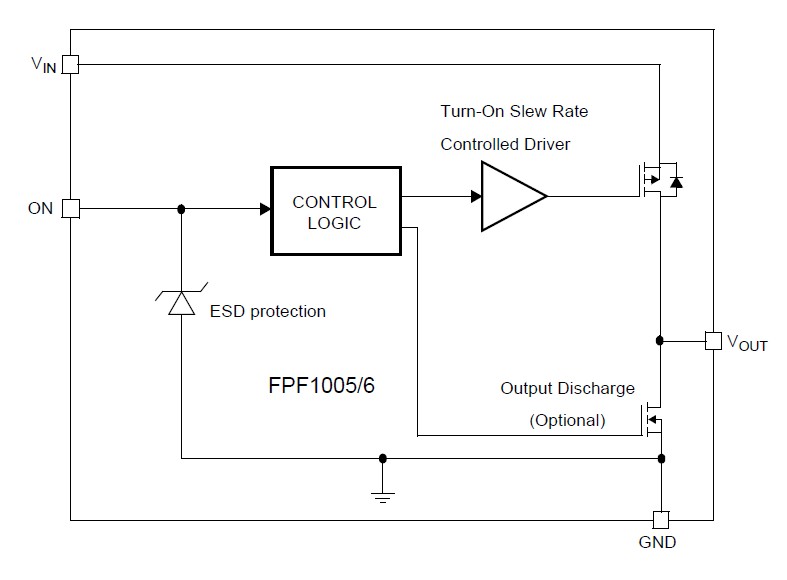

Diagrams

FPF1006 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FPF1006
FPF1006
Fairchild Semiconductor
Power Switch ICs - Power Distribution MLP6 INTELLIMAX ADVANCED LOAD
Data Sheet
0-1: $0.52
1-25: $0.46
25-100: $0.35
100-250: $0.31
