Product Summary

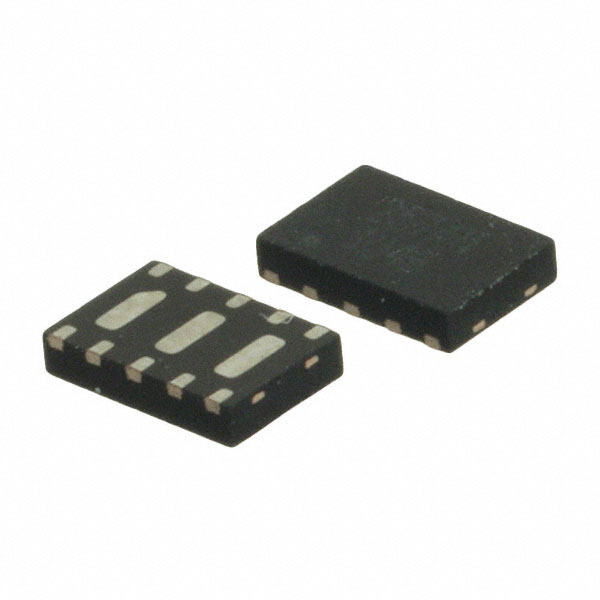

RCLAMP2574N

Features

<ul>
<li>
Transient protection for high-speed data lines to
<ul>
<li>
IEC 61000-4-2 (ESD) ±30kV (air), ±30kV (contact)
<li>
IEC 61000-4-4 (EFT) 40A (5/50ns)
<li>
IEC 61000-4-5 (Lightning) 40A (8/20μs)
</li>
</ul>
<li>
Array of surge rated diodes with internal TVS Diode
<li>
Small package saves board space
<li>
Protects two line pairs
<li>
Low capacitance for high-speed interfaces
<li>
Low variation in capacitance vs. bias voltage
<li>
Low clamping voltage
<li>
Low operating voltage: 2.5V
<li>
Solid-state silicon-avalanche technology
</li>
</ul>

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RCLAMP2574N.TCT
RCLAMP2574N.TCT

TVS DIODE 2.5V RAILCLAMP
Data Sheet
0-1: $1.01
1-25: $0.68
25-100: $0.59
100-1000: $0.55
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RCLAMP0502A.TCT
RCLAMP0502A.TCT

TVS DIODE 50W 5V 2CH BI SC89-6
Data Sheet
0-3000: $0.18
3000-6000: $0.17
6000-9000: $0.17
9000-12000: $0.17
RCLAMP0502B.TCT
RCLAMP0502B.TCT

IC TVS ARRAY 2-LINE 5V SC-75
Data Sheet
0-1: $0.34
1-25: $0.23
25-100: $0.20
100-1000: $0.18
RCLAMP0502BA.TCT
RCLAMP0502BA.TCT

TVS
Data Sheet
0-1: $0.34
1-25: $0.23
25-100: $0.20
100-1000: $0.18
RCLAMP0504F.TCT
RCLAMP0504F.TCT

IC TVS ARRAY 4-LINE 5V SC70-6
Data Sheet
0-3000: $0.28
3000-6000: $0.27
6000-9000: $0.26
9000-12000: $0.26
RCLAMP0504FA.TCT
RCLAMP0504FA.TCT

TVS
Data Sheet
0-1: $0.53
1-25: $0.36
25-100: $0.31
100-1000: $0.29
RCLAMP0504M.TBT
RCLAMP0504M.TBT

IC TVS ARRAY 4-LINE 5V 10MSOP
Data Sheet
0-1: $0.75
1-25: $0.50
25-100: $0.43
