Product Summary
The PN2907A is a PNP general purpose amplifier. The BC547B is designed for use as general purpose amplifiers and switches requiring collector currents to 500 mA. Sourced from process 63.
Parametrics
PN2907A absolute maximum ratings: (1)Collector-emitter voltage: 60 V; (2)Collector-base voltage: 60 V; (3)Emitter-base voltage: 5.0 V; (4)Collector current - continuous: 800 mA; (5)Operating and storage junction temperature range: -55 to +150 °C.
Features
PN2907A features: (1)V(BR)CE°Collector-Emitter Breakdown Voltage* IC = 10 mA, IB = 0: 60 V; (2)V(BR)CB°Collector-Base Breakdown Voltage IC = 10 μA, IE = 0: 60 V; (3)V(BR)EBO Emitter-Base Breakdown Voltage IE = 10 μA, IC = 0: 5.0 V; (4)IB Base Cutoff Current VCB = 30 V, VEB = 0.5 V: 50 nA; (5)ICEX Collector Cutoff Current VCE = 30 V, VBE = 0.5 V: 50 nA.

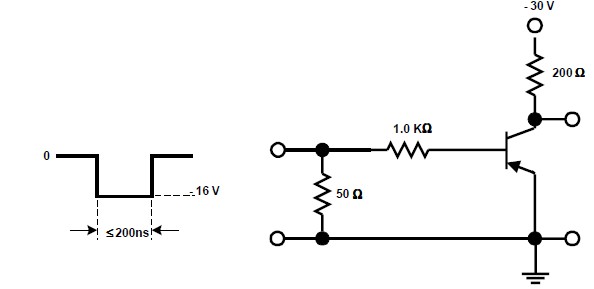

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PN2907A |
Central Semiconductor |
Transistors Bipolar (BJT) PNP Gen Pur SW |
Data Sheet |
|
|
||||||||||||
|
PN2907A AMO |
NXP Semiconductors |
Transistors Bipolar (BJT) TRANS SW WIDE PITCH |
Data Sheet |
Negotiable |
|
||||||||||||
|
PN2907A T/R |
NXP Semiconductors |
Transistors Bipolar (BJT) PNP SW 600MA 60V |
Data Sheet |
Negotiable |
|
||||||||||||
|
PN2907A_D11Z |
Fairchild Semiconductor |
Transistors Bipolar (BJT) |
Data Sheet |
Negotiable |
|
||||||||||||
|
PN2907ABU |
Fairchild Semiconductor |
Transistors Bipolar (BJT) PNP Transistor General Purpose |
Data Sheet |
|
|
||||||||||||
 |
PN2907A-T |
Rectron |
Transistors Bipolar (BJT) PNP 0.8A 60V Gen Pur |
Data Sheet |
|
|
||||||||||||
|
PN2907ARLRAG |
ON Semiconductor |
Transistors Bipolar (BJT) 600mA 60V PNP |
Data Sheet |
Negotiable |
|
||||||||||||
|
PN2907ARP |
Fairchild Semiconductor |
Transistors Bipolar (BJT) TO-92 |
Data Sheet |
Negotiable |
|
||||||||||||
