Product Summary
The pesd12vs5ud is a fivefold ElectroStatic Discharge (ESD) protection diode array. The pesd12vs5ud is in a SOT457(SC-74) small Surface-Mounted Device (SMD)plastic package designed to protect upto five signal lines from the damage caused by ESD and other transients. Applications of the pesd12vs5ud include: Computers and peripherals, Audio and video equipment, Cellular handsets and accessories, Communication systems, Portable electronics and Subscriber Identity Module (SIM) card protection.
Parametrics
pesd12vs5ud absolute maximum ratings: (1) peak pulse power Ppp: 200W (tp=8/20μs) ; (2) peak pulse current Ipp: 20A; (3) junction temperature Tj: 150°C; (4) ambient temperature Tamb: -65 to +150°C; (5) storage temperature Tstg: -65 to +150°C; (6) electrostatic discharge voltage VESD: 30kV.
Features
pesd12vs5ud features: (1) ESD protection of up to five lines; (2) Max. peak pulse power: Ppp =200W; (3) Ultra low leakage current: IRM =50pA; (4) Low clamping voltage: VCL=12V at Ipp=20A; (5) ESD protection up to 30kV; (6) IEC61000-4-2; level4 (ESD) ; (7) IEC61000-4-5 (surge); Ipp up to 20A.

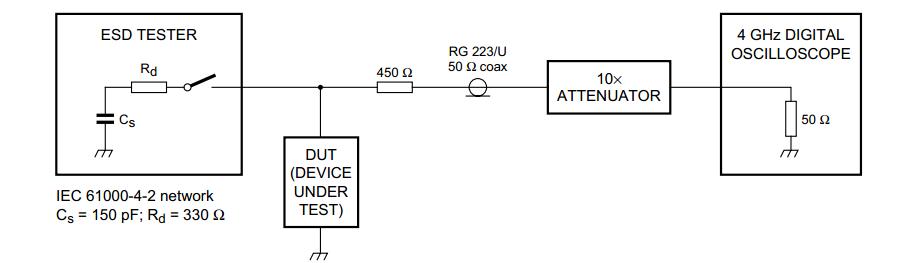

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PESD12VS5UD,115 |
NXP Semiconductors |
TVS Diode Arrays 12V 5X ESD ARRAY |
Data Sheet |
|
|
||||||||||||
