NDC7002N

NDC7002N, Dual N-Channel Enhancement Mode Field Effect Transistor, 50V, 0.51A, Fairchild Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: NDC7002N

Brand:: Fairchild Semiconductor - Fairchild | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-18

From Other Seller

Part Number:NDC7002N
US $0.30 - 0.50
Quantity:

piece

Product Summary

The dual N-Channel enhancement mode power field effect transistors are produced using high cell density, DMOS technology. This very high density process has been designed to minimize on-state resistance, provide rugged and reliable performance and fast switching. The NDC7002N is particularly suited for low voltage applications requiring a low current high side switch.

Parametrics

NDC7002N absolute maximum ratings: (1)Drain-Source Voltage: 50 V; (2)Gate-Source Voltage - Continuous: 20 V; (3)Drain Current - Continuous: 0.51 A; (4)Maximum Power Dissipation: 0.96 W; (5)Operating and Storage Temperature Range: -55 to 150 ℃.

Features

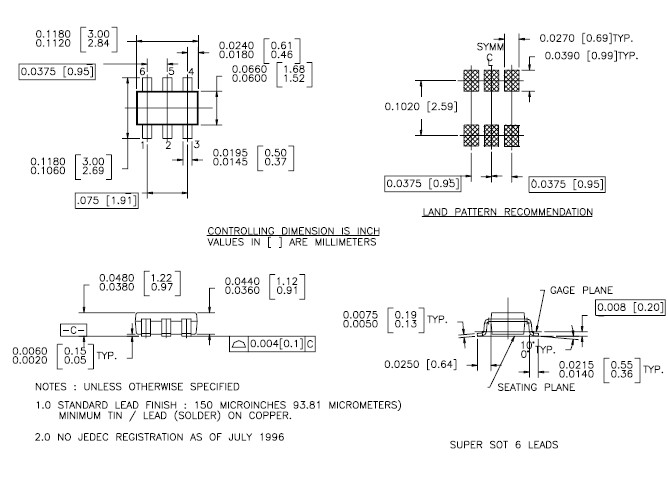

NDC7002N features: (1)0.51A, 50V, RDS(ON) = 2W @ VGS=10V; (2)High density cell design for low RDS(ON); (3)Proprietary SuperSOTTM-6 package design using copper lead frame for superior thermal and electrical capabilities; (4)High saturation current.
