Product Summary

The BFG540W,115 is an NPN silicon planar epitaxial transistor. The BFG540W,115 is intended for wideband applications in the GHz range, such as analog and digital cellular telephones, cordless telephones (CT1, CT2, DECT, etc.), radar detectors, satellite TV tuners (SATV), MATV/CATV amplifiers and repeater amplifiers in fibre-optical systems. The BFG540W,115 is mounted in plastic SOT package.

Parametrics

BFG540W,115 absolute maximum ratings: (1)VCBO collector-base voltage open emitter: 20 V; (2)VCES collector-emitter voltage RBE = 0 : 15 V; (3)VEBO emitter-base voltage open collector : 2.5 V; (4)IC DC collector current : 120 mA; (5)Ptot total power dissipation Ts≤60 ℃; note 1: 400 mW; (6)Tstg storage temperature: -65 to +150℃; (7)Tj junction temperature: 150℃.

Features

BFG540W,115 features: (1)High power gain; (2)Low noise figure; (3)High transition frequency; (4)Gold metallization ensures excellent reliability.

Diagrams

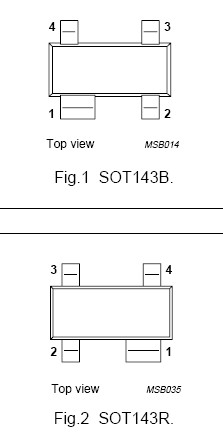

BFG540W,115 Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BFG540W,115
BFG540W,115

NXP Semiconductors

Transistors RF Bipolar Small Signal TAPE-7 TNS-RFSS

Data Sheet

0-1: $0.43
1-25: $0.38
25-100: $0.33
100-250: $0.29
