Product Summary

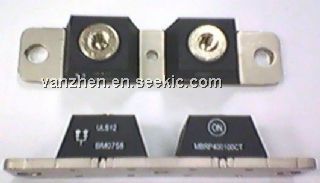

The MBRP30060CT is a powertap II switchmode power rectifier.
Parametrics
MBRP30060CT absolute maximum ratings: (1)Peak repetitive reverse voltage working peak reverse voltage DC blocking voltage VRRM VRWM VR: 60 Volts; (2)Average rectified forward current (rated VR)TC = 140°C per device IF(AV): 300 Amps,per leg: 150 Amps; (3)Peak repetitive forward current, per leg (rated VR, square wave, 20 kHz), TC = 140°C IFRM: 300 Amps; (4)Non–repetitive peak surge current (surge applied at rated load conditions halfwave, single phase, 60 Hz)IFSM: 2500 Amps; (5)Peak repetitive reverse current, per leg (2.0 ms, 1.0 kHz)see figure 6. IRRM: 2.0 Amps; (6)Operating junction temperature TJ: -55 to +175 °C; (7)Storage temperature Tstg: -55 to +150 °C; (8)Voltage rate of change (rated VR)dv/dt: 10000 V/ms.
Features
MBRP30060CT features: (1)Dual diode construction — may be paralleled for higher current output; (2)Guardring for stress protection; (3)Low forward voltage; (4)175°C operating junction temperature; (5)Guaranteed reverse avalanche.

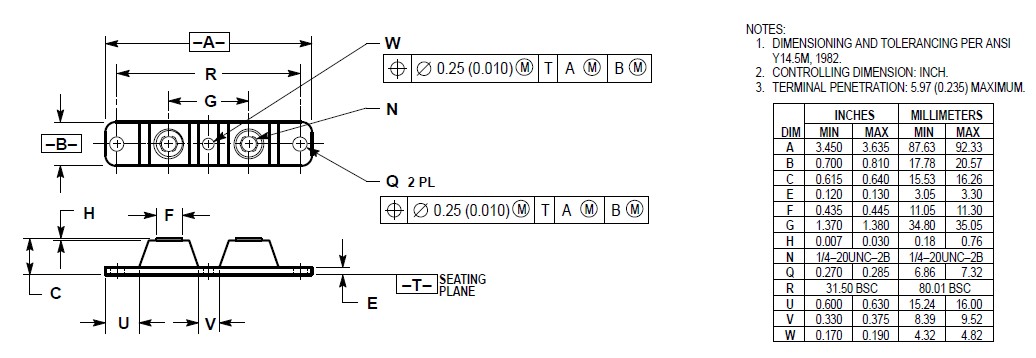

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MBRP30060CT |
ON Semiconductor |
Schottky (Diodes & Rectifiers) 300A 60V |
Data Sheet |
Negotiable |
|
||||
|
MBRP30060CTG |
ON Semiconductor |
Schottky (Diodes & Rectifiers) 300A 60V |
Data Sheet |
Negotiable |
|
||||
