Product Summary

The BZV55-B2V7 is a zener diode.

Parametrics

BZV55-B2V7 absolute maximum ratings: (1)Power Dissipation at Tflange = 50℃: 500 mW; (2)Power Dissipation at TA = 50℃: 400 mW; (3)Junction Temperature: –65℃ to +200℃; (4)Storage Temperature Range: –65℃ to +200℃; (5)Continuous Forward Current: 250 mA; (6) Peak reverse power disipation (non-repetitive) tp=100μs:30W; (7) Thermal Resistance Junction to Ambient Air: 0.38K/mW; (8) Thermal Resistance Junction to Lead: 0.30 K/mW; (9) Forward Voltage at IF = 10 mA: 0.9 V.

Features

BZV55-B2V7 features: (1)Silicon Planar Power Zener Diodes; (2)For use as low voltage stabilizer or voltage reference; (3)The Zener voltages are graded according to the international E 24 standard Higher Zener voltages and 1% tolerance available on request; (4)Diodes available in these tolerance series: ±2% BZV55-B, ±3% BZV55-F, ±5% BZV55-C.

Diagrams

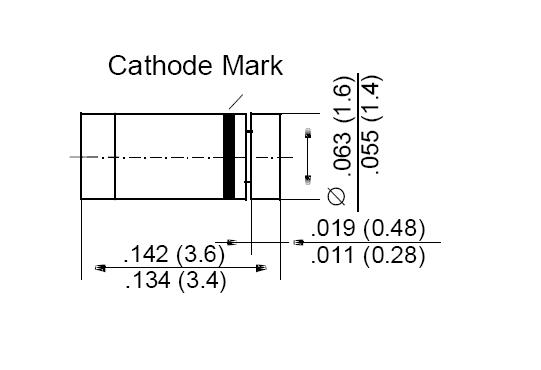

BZV55-B2V7 Dimmension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BZV55-B2V7,115
BZV55-B2V7,115

NXP Semiconductors

Zener Diodes DIODE ZENER 2 PCT

Data Sheet

0-1: $0.04
1-25: $0.03
25-100: $0.03
100-250: $0.03
BZV55-B2V7 T/R
BZV55-B2V7 T/R

NXP Semiconductors

Zener Diodes DIODE ZENER 2 PCT TAPE-7

Data Sheet

Negotiable
