Product Summary

The 1N5402 is a standard recovery rectifier.

Parametrics

1N5402 absolute maximum ratings: (1)Peak repetitive reverse voltage working peak reverse voltage DC blocking voltage VRRM VRWM VR: 200 Volts; (2)Non–repetitive peak reverse voltage VRSM: 300 Volts; (3)Average rectified forward current (single phase resistive load, 1/2, leads, TL = 105°C)IO: 3.0 Amp; (4)Non–repetitive peak surge current (surge applied at rated load conditions)IFSM: 200 (one cycle)Amp; (5)Operating and storage junction temperature range TJ: – 65 to +170 °C, Tstg: – 65 to +175 °C.

Features

1N5402 features: (1)High current to small size; (2)High surge current capability; (3)Low forward voltage drop; (4)Void–free economical plastic package; (5)Available in volume quantities.

Diagrams

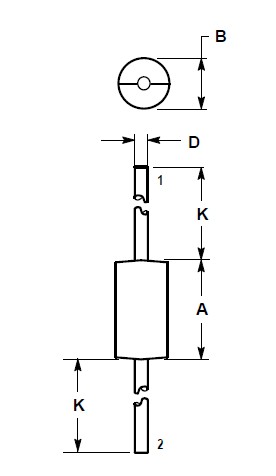

1N5402 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
1N5402
1N5402
Fairchild Semiconductor
Rectifiers 3.0a Rectifier General Purpose
Data Sheet
0-1: $0.13
1-25: $0.12
25-100: $0.10
100-250: $0.08
1N5402/1
1N5402/1
Vishay Semiconductors
Rectifiers Vr/200V Io/3A BULK
Data Sheet
Negotiable
1N5402/54
1N5402/54

DIODE STD REC 200V 3A DO-201AD
Data Sheet
Negotiable
1N5402_Q
1N5402_Q
Fairchild Semiconductor
Rectifiers 3.0a Rectifier General Purpose
Data Sheet
Negotiable
1N5402-B
1N5402-B
Rectron
Rectifiers Vr/200V Io/3A BULK
Data Sheet
0-2500: $0.04
2500-5000: $0.03
5000-10000: $0.03
1N5402-E3/51
1N5402-E3/51
Vishay Semiconductors
Rectifiers 3.0 Amp 200 Volt
Data Sheet
0-1: $0.26
1-10: $0.25
10-50: $0.23
50-100: $0.21
1N5402-E3/54
1N5402-E3/54
Vishay Semiconductors
Rectifiers 3.0 Amp 200 Volt
Data Sheet
0-1: $0.19
1-10: $0.17
10-100: $0.15
100-250: $0.11
1N5402-E3/73
1N5402-E3/73
Vishay Semiconductors
Rectifiers 3.0 Amp 200 Volt
Data Sheet
0-1000: $0.07
1000-6700: $0.07
6700-9000: $0.07
9000-18000: $0.07
