Product Summary

The 1N4740 is a zener diode.

Parametrics

1N4740 absolute maximum ratings: (1)Power dissipation at tamb = 25°C Ptot: 1.0 Watts; (2)Junction temperature Tj: 175 °C; (3)Storage temperature range TS: -65 to +175 °C; (4)Thermal resistance junction to ambient air RthJA: 170 °C/W; (5)Forward voltage at IF = 200 mA VF: 1.2 Volts.

Features

1N4740 features: (1)Silicon planar power zener diodes; (2)For use in stabilizing and clipping circuits with high power rating; (3)Standard zener voltage tolerance is ±10%. Add suffix “A” for ±5% tolerance. Other zener voltages and tolerances are available upon request; (4)These diodes are also available in the MELF case with type designation ZM4728 thru ZM4764.

Diagrams

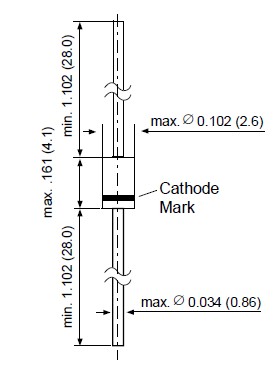

1N4740 pin connection
