Product Summary

The tcs1103 is a transmissive optical sensor. The tcs1103 includes an infrade emitter and phototransistor, located face-to-face on the optical axes in a leade package which blocks visible light. Applications of the tcs1103 include: optical switch, photo interrupter, counter and encoder.

Parametrics

tcs1103 absolute maximum ratings: (1) reverse voltage VR: 6V; (2) forward current IF: 60mA; (3) forward surge current tp≤10μs IFSM: 3A; (4) power dissipation Tamb≤25°C, Pv: 100mW; (5) Junction temperature Tj: 100°C; (6) collector emitter voltage VCEO: 70V; (7) emitter collector voltage VECO: 7V; (8) collector peak current tp/T=0.5, tp≤10ms, ICM: 200mA; (9) power dissipation Tamb≤25°C, Pv: 150mW; (10) junction temperature: 100°C.

Features

tcs1103 features: (1) package type: leaded; (2) detector type: phototransistor; (3) dimensions (L*W*H mm) : 11.9×6.3×10.8; (4) gap (in mm) : 3.1; (5) typical output current under test: Ic=4mA; (5) daylight blocking filter; (6) emitter wavelength: 950nm; (7) lead (pb)-free soldering released; (8) complaint to RoHs directive 2002/95/EC and in accordance to WEEE 2002/96/EC.

Diagrams

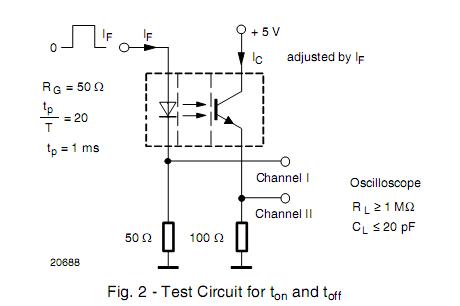

tcs1103 test circuit
