Product Summary

The BMP180 is a new digital barometric pressure sensor of Bosch Sensortec, with a very high performance, which enables applications in advanced mobile devices, such as smart phones, tablet PCs and sports devices. It follows the BMP085 and brings many improvements, like the smaller size and the expansion of digital interfaces. The applications of the BMP180 are (1)Indoor navigation; (2)GPS-enhancement for dead-reckoning, slope detection, etc; (3)Sport devices, e.g. altitude profle; (4)Weather forecast; (5)Vertical velocity indication (rise/sink speed).

Parametrics

BMP180 absolute maximum ratings: (1)Peak current: 650 μA, typ; (2)Stand-by current: 0.1 μA, typ; (3)Supply voltage VDDIO: 1.62 to 3.6 V; (4)Supply voltage VDD: 1.8 to 3.6 V; (5)Operation temp.: -40 to +85 °C; (6)range full accuracy: 0 to +65 °C.

Features

BMP180 features: (1)Operating Pressure: 300 ~ 1100 mbar; (2)Voltage - Supply: 1.8 V ~ 3.6 V; (3)Termination Style: PCB; (4)Operating Temperature: -40°C ~ 85°C; (5)Package / Case: 7-VELGA.

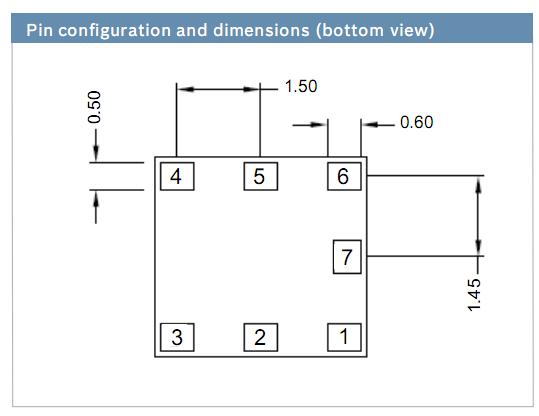

Diagrams

BMP180 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

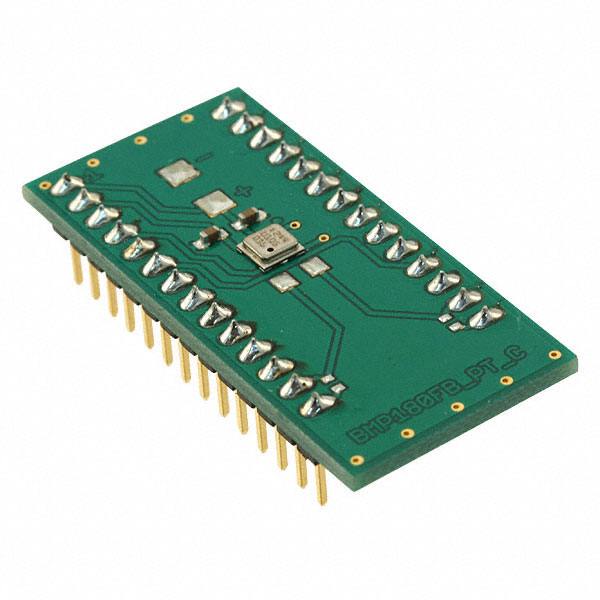

BMP180-SHUTL
BMP180-SHUTL


BMP180 SHUTTLE BOARD FOR DEV KIT

Data Sheet

0-1: $25.20

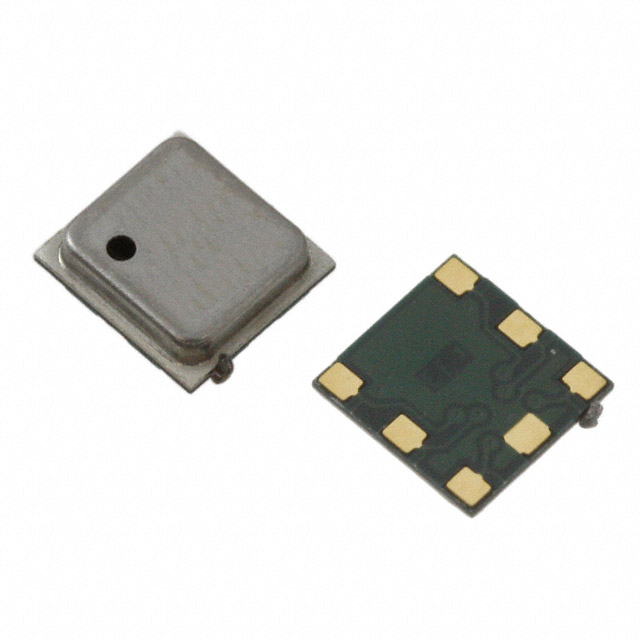

BMP180
BMP180


SENSOR PRESSURE ABS

Data Sheet

0-1: $3.28
1-10: $2.78
10-100: $2.35
100-250: $2.10
250-500: $1.98
500-1000: $1.85
1000-2500: $1.79
