Product Summary

The mpxhz6400ac6t1 is a high temperature accuracy integrated silicon pressure sensor for measuring absolute pressure, on-chip signal conditioned,temperature compensated and calibrated. The mpxhz6400ac6t1 integrates on-chip, bipolar op amp circuitry and thin film resistor networks to provide a high output signal and temperature compensation. Applications of the mpxhz6400ac6t1 include: Industrial Controls and Engine Control/Liquified Petroleum Gas (LPG) .

Parametrics

mpxhz6400ac6t1 absolute maximum ratings: (1) Maximum Pressure PMAX: 1600kPa; (2) Storage Temperature TSTG: -40 to +125°C; (3) Operating Temperature TA: -40 to +125°C; (4) Output Source Current @ Full Scale Output Io+: 0.5mAdc; (5) Output Sink Current @ Minimum Pressure Offset Io-: -0.5mAdc.

Features

mpxhz6400ac6t1 features: (1) Improved Accuracy at High Temperature; (2) Available in Small and Super Small Outline Packages; (3) 1.5% Maximum Error over 0 to 85°C; (4) Ideally suited for Microprocessor or Microcontroller-Based Systems; (5) Temperature Compensated from -40 to +125°C; (6) Durable Thermoplastic (PPS) Surface Mount Package.

Diagrams

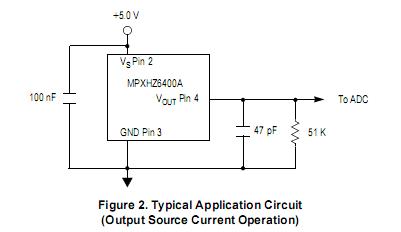

MPXHZ6400AC6T1 Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MPXHZ6400AC6T1
MPXHZ6400AC6T1
Freescale Semiconductor
Board Mount Pressure / Force Sensors SSOP INTEG W/PORT SIFEL
Data Sheet
0-1: $5.56
1-25: $5.02
25-50: $4.30
50-100: $3.48
