Product Summary

The OV7740 is an ultra-high sensitivity CMOS image sensor. It provcides the full functionality of a single-chip VGA camera in a small footprint. The OV7740 can operate at 60 frames per second in VGA resolution and 120 fps in QVGA resolution with complete user control over image quality, formatting and output data transfer. The OV7740 supports a digital video parallel port, and provides full-frame, sub-sampled, windowed or scaled 8-bit/10-bit RAW RGB and 8-bit YUV images. The applications of the OV7740 are PC multimedia, security/surveillance and toys/games.

Parametrics

OV7740 absolute maximum ratings: (1)array size: 656*488; (2)power supply, core: 1.5VDC±5%; analog: 3.3V±5%; I/O: 1.7-3.47V; (3)operating temperature range: -30 to 70°C; (4)stable image temperature range: 0 to 50°C; (5)output format: 8-/10-bit raw RGB data 8-bit YUV; (6)lens size: 1/5 inch; (7)input clock frequency: 6-27MHz; (8)max image transfer rate: VGA: 60FPS; qvga: 120fps; (9)sensitivity: 6800mV; (10)maximum exposure interval: 502tROW; (11)pixel size: 4.2um*4.2um; (12)image area: 2755.2um*2049.6um.

Features

OV7740 features: (1)support for output formats: RAW RGB and YUV; (2)support for image sizes: VGA, QVGA, CIF and any size smaller; (3)support for black sun cancellation; (4)support for internal and extermal frame synchronization; (5)standard SCCB serial interface; (6)digital video port parallel output interface; (7)embedded one-time programmable memory; (8)on-chip phase lock loop; (9)embedded 1.5V regulator for core.

Diagrams

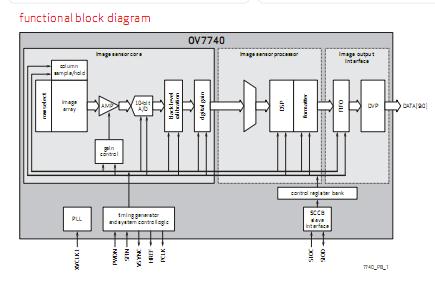

OV7740 block diagram
