AD590

AD590, temperature transducer, 44 V, 298.2 μA, CAN

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.50~6.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	6.00 / Piece
100 ~ 1000 :	5.00 / Piece
1000 ~ 100000 :	4.50 / Piece

PartNumber:: AD590

Brand:: Analog Devices - AD | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-11

From Other Seller

Part Number:AD590
US $4.50 - 6.00
AD590JH

US $3.90 - 4.90 / Piece
(0) Remove
AD590JH

US $0.01 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

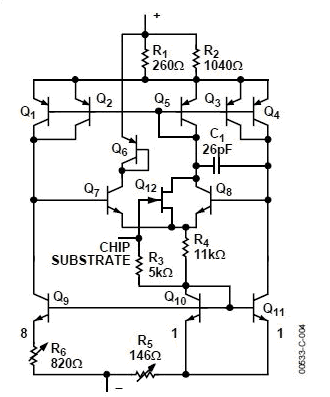

The AD590 is a 2-terminal integrated circuit temperature transducer that produces an output current proportional to absolute temperature. For supply voltages between 4 V and 30 V the device acts as a high-impedance, constant current regulator passing 1 μA/K. Laser trimming of the thin-film resistors of the chip is used to calibrate the device to 298.2 μA output at 298.2 K (25℃). The AD590 should be used in any temperature-sensing application below 150℃ in which conventional electrical temperature sensors are currently employed.

Parametrics

AD590 absolute maximum ratings: (1)Forward Voltage ( E+ or E–): 44 V; (2)Reverse Voltage (E+ to E–): -20 V; (3)Breakdown Voltage (Case E+ or E–): ±200 V; (4)Rated Performance Temperature Range: -55℃ to +150℃; (5)Storage Temperature Range: -65℃ to +155℃; (6)Lead Temperature (Soldering, 10 sec): 300℃.

Features

AD590 features: (1)Linear current output: 1 μA/K; (2)Wide temperature range: .55℃ to +150℃; (3)Probe compatible ceramic sensor package; (4)2-terminal device: voltage in/current out; (5)Laser trimmed to ±0.5℃ calibration accuracy (AD590M); (6)Excellent linearity: ±0.3℃ over full range (AD590M); (7)Wide power supply range: 4 V to 30 V; (8)Sensor isolation from case; (9)Low cost.
