Product Summary

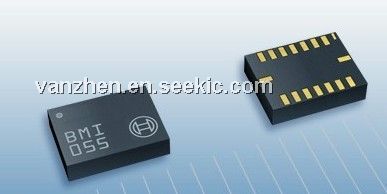

The BMI055 is a very small, 6 axis inertial sensor, consisting of: A digital, triaxial 12bit acceleration sensor and a digital, triaxial 16bit, ±2000°/s gyroscope. The BMI055 allows very low-noise measurement of angular rates and accelerations in 3 perpendicular axes and thus senses tilt, motion, shock and vibration in mobile phones, handhelds, computer peripherals, man-machine interfaces, remote and game controllers. The BMI055 can be applied in activity monitoring, step-counting, navigation, vibration measurement, also for active damping, six-dimensional tracking of trajectories, flat detection, tap sensing, menu scrolling, tilt compensation for electronic compass, advanced power management for mobile devices, and shock and free-fall detection, and image stabilization.

Parametrics

BMI055 absolute maximum ratings: (1)Digital resolution: Accelerometer (A): 12bit; (2)Supply voltage (VDD): 2.4 to 3.6 V; (3)Temperature range: -40 to 85°C; (4)Current consumption (Full operation): 5.15 mA; (5)Accelerometer wake-up mode: < 10 μA; (6)Shock resistance: 10,000 g ×200 μs.

Features

BMI055 features: (1)Sensor features; (2)Integrated interrupt engine; (3)System compatibility.

Diagrams

BMI055 pin configuration
