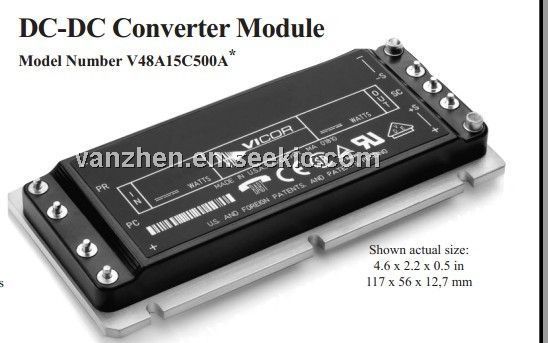

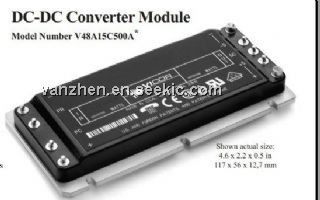

Product Summary

The V48C24C150AL2 is a DC-DC converter module. The V48C24C150AL2 uses 2nd Generation power processing, control and packaging technologies to provide the performance, flexibility and cost effectiveness expected of a mature power component. High frequency ZCS/ZVS switching, advanced power semiconductor packaging and thermal management of the V48C24C150AL2 provides high power density with low temperature gradients. Applications of the V48C24C150AL2 include: distributed power; off-line systems using power PFC front-ends and electric vehicles.

Parametrics

V48C24C150AL2 absolute maximum ratings: (1) +In to -In voltage: -0.5 to +425V; (2) +In to -In voltage: 500V (<100m) ; (3) PC to -In voltage: -0.5 to +7V; (4) PR to -In voltage: -0.5 to +7V; (5) +Out to -Out voltage: -0.5 to +7V; (6) SC to -Out voltage: -0.5 to +7V; (7) SC to -Out voltage: -0.5 to +1.5V; (8) Isolation voltage (in to out) : 3000 Vrms; (9) Isolation voltage (in to base) : 1550Vrms; (10) Isolation voltage (out to base) : 500Vrms; (11) Storage temperature (C-Grade) : -40 to +125°C; (12) Operating temperature (C-Grade) : -20 to +100°C.

Features

V48C24C150AL2 features: (1) DC input range: 250- 425V; (2) Input surge withstand:500Vfor 100ms; (3) DC output: 5V; (4) Programmable output: 10 to 110%; (5) Regulation: ±0.2% no load to full load; (6) Efficiency: 80%; (7) Maximum operating temperature: 100°C at full load; (8) Power density: 61W/cubic inch; (9) Height above board: 0.43 in. (10,9 mm) ; (10) Parallelable, with N+M fault tolerance; (11) Low noise ZCS/ZVS architecture.

Diagrams

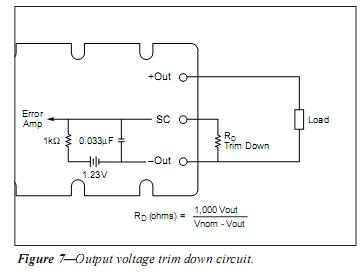

V48C24C150AL2 Circuit
