The SKM400GAR126D is a low loss IGBT module. The applications of the SKM400GAR126D include Switching (not for linear use), inverter drives and UPS.

Parametrics

SKM400GAR126D absolute maximum ratings: (1)VCES: 1200V; (2)IC: 600(400)A; (3)ICRM at tp=1ms: 600A; (4)VGES: ±20V; (5)Tstg: -40 to 125℃; (6)Visol: 2500V; (7)IF: 390 (260) A; (8)IFRM: 600A; (9)IFSM: 2900A.

Features

SKM400GAR126D features: (1)Mos input (voltage controlled); (2)N channel, homgeneous Si-structure (NPT-Nonpunch-through IGBT); (3)Low inductance case; (4)Very low tail current with low temperature dependence; (5)High short circuit capability, self limiting to 6 x Icnom; (6)Latch-up free; (7)Fast & soft inverse CAL diodes; (8)Isolated copper baseplate using DBC Direct Copper Bonding Technology; (9)Large clearance (12mm) and creepage distances (20mm).

Diagrams

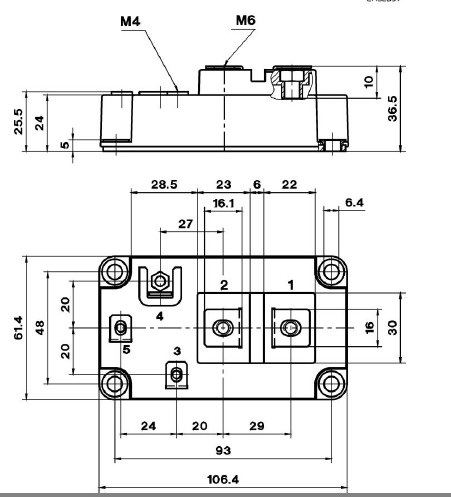

SKM400GAR126D dimension
