Product Summary
The SKKD115F14 is a Fast Diode Module. The applications of it are self-commutated inverters, DC choppers, ac motor speed control, inductive heating, uninterruptible power supplies, electronics welders, general power switching applications.
Parametrics
SKKD115F14 absolute maximum ratings: (1)IFAV: 113(83)A; (2)IFSM: 2500A; (3)VF: 1.8V; (4)V(TO): 1.1V; (5)IRD: 1mA; (6)Qrr: 90uC; (7)IRM: 90A; (8)trr: 2000ns; (9)Err: 1.35mJ; (10)Tvj: -40 to +130°C; (11)Tstg: -40 to +125°C.
Features
SKKD115F14 features: (1)heat transfer through ceramic isolated metal baseplate; (2)hard soldered joints for high reliability; (3)UL recognized, file no. E63532.

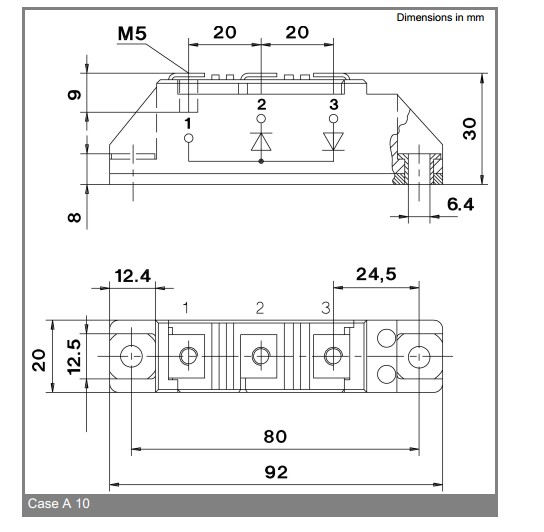

Diagrams
