Product Summary

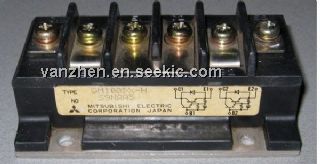

The QM50DY-2H is a Mitsubishi transistor module. Applications are (1)Inverters; (2)Servo drives; (3)UPS; (4)DC motor controllers; (5)NC equipment; (6)Welders.
Parametrics
QM50DY-2H absolute maximum ratings: (1)VCEX (SUS) Collector-emitter voltage IC=1A, VEB=2V: 1000V; (2)VCEX Collector-emitter voltage VEB=2V: 1000V; (3)VCBO Collector-base voltage: 1000V; (4)VEBO Emitter-base voltage: 7V; (5)IC Collector current: 50A; (6)–IC Collector reverse current: DC(forward diode current): 50A; (7)PC Collector dissipation TC=25℃: 400W; (8)IB Base current DC: 3A; (9)–ICSM Surge collector reverse current(forward diode current): 500A; (10)Tj Junction temperature: –40 to +150 ℃; (11)Tstg Storage temperature: –40 to +125 ℃; (12)Viso Isolation voltage: 2500V.
Features
QM50DY-2H features: (1)IC collector current: 50A; (2)VCEX collector-emitter voltage: 1000V; (3)hFE dc current gain: 75; (4)Insulated type; (5)UL recognized.

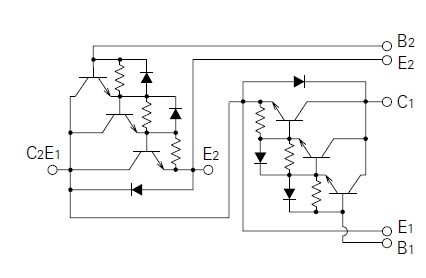

Diagrams
