Product Summary

The PS21967 is a dual-in-line intelligent power module. DIP-IPMs are intelligent power modules that integrate power device, driver, and protection circuitry in an ultra compact dual-in-line transfer-mold package for use in driving small three phase motor. Applications are: (1)Refrigerators; (2)Air Conditioners; (3)Small Servo Motors; (4)Small Motor Control.


Parametrics

PS21967 absolute maximum ratings: (1)Power Device Junction Temperature* Tj: -20 to 125 °C; (2)Storage Temperature Tstg: -40 to 125 °C; (3)Case Operating Temperature (Note 1)TC: -20 to 100 °C; (4)Mounting Torque, M3 Mounting Screws: 6.9 in-lb; (5)Module Weight (Typical): 10 Grams; (6)Heatsink Flatness (Note 2):-50 to 100 µm; (7)Self-protection Supply Voltage Limit (Short Circuit Protection Capability)** VCC(prot.): 400 Volts; (8)Isolation Voltage, AC 1 minute, 60Hz Sinusoidal, Connection Pins to Heatsink Plate VISO: 1500 Volt.

Features

PS21967 features: (1)Compact Packages; (2)Single Power Supply; (3)Integrated HVICs; (4)Direct Connection to CPU; (5)Reduced Rth.

Diagrams

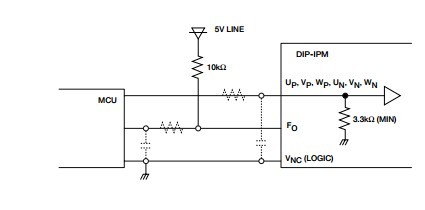

PS21967 v0 pin connection
