Product Summary

The PS21964 is a 600V/15A low-loss 5th generation IGBT inverter bridge for three phase DC-to-AC power conversion. The applications of the PS21964 are: AC100V~200V three-phase inverter drive for small power motor control.

Parametrics

PS21964 absolute maximum ratings: (1)Supply voltage, VCC: 450V; (2)Supply voltage (surge), VCC(surge): 500V; (3)Collector-emitter voltage, VCES: 600V; (4)Each IGBT collector current, ±IC: 15A; (5)Each IGBT collector current (peak), ±ICP: 30A; (6)Collector dissipation, PC: 33.3W; (7)Junction temperature, Tj: -20 to 125℃.

Features

PS21964 features: (1)For upper-leg IGBTS :Drive circuit, High voltage isolated high-speed level shifting, Control supply under-voltage (UV) protection; (2)For lower-leg IGBTS : Drive circuit, Control supply under-voltage protection (UV), Short circuit protection (SC); (3)Fault signaling : Corresponding to an SC fault (Lower-leg IGBT) or a UV fault (Lower-side supply); (4)Input interface : 3V, 5V line (High Active).

Diagrams

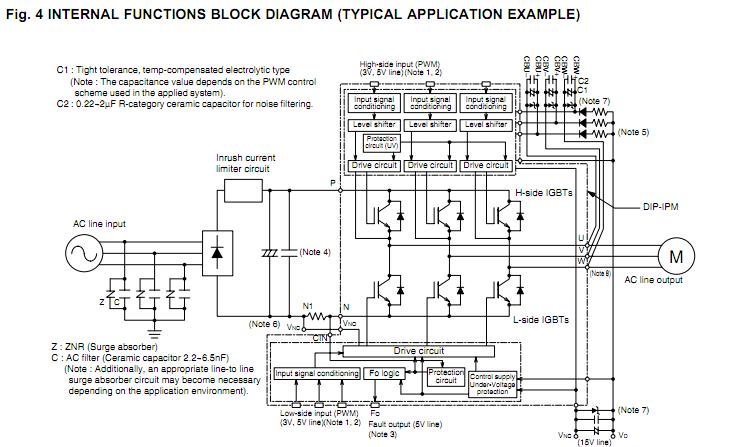

PS21964 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PS21964-4
PS21964-4


MOD IPM 600V 15A SUPERMINIDIP

Data Sheet

0-1: $19.30
1-10: $17.85
10-100: $15.24
100-250: $13.99
250-500: $13.31
500-1000: $12.54
1000-2500: $12.16
2500-5000: $11.87
5000-10000: $11.58
PS21964-4A
PS21964-4A


MOD IPM 600V 15A SUPER MINI DIP

Data Sheet

0-7: $19.30
PS21964-S
PS21964-S

Other


Data Sheet

Negotiable
PS21964-ST
PS21964-ST

Other


Data Sheet

Negotiable
PS21964-T
PS21964-T

Other


Data Sheet

Negotiable
PS21964-4S
PS21964-4S


MOD IPM 600V 15A SUPER MINI DIP

Data Sheet

0-5: $23.03
