Product Summary

The PS21963-4ES is a 600V/8A low-loss CSTBTTM inverter bridge for three phase DC-to-AC power conversion. It is used for AC100V~200V inverter drive for small power motor control.

Parametrics

PS21963-4ES absolute maximum ratings: (1)Supply voltage: 450V; (2)Supply voltage (surge): 500V; (3)Collector-emitter voltage: 600V; (4)Each IGBT collector current: 8A; (5)Each IGBT collector current (peak): 16A; (6)Collector dissipation: 243W; (7)Junction temperature: –20~+125℃.

Features

PS21963-4ES features: (1)For upper-leg IGBTS :Drive circuit, High voltage high-speed level shifting, Control supply under-voltage (UV) protection; (2)For lower-leg IGBTS : Drive circuit, Control supply under-voltage protection (UV), Short circuit protection (SC); (3)Fault signaling : Corresponding to an SC fault (Lower-leg IGBT) or a UV fault (Lower-side supply); (4)Input interface : 3V, 5V line (High Active); (5)UL Approved : Yellow Card No. E80276.

Diagrams

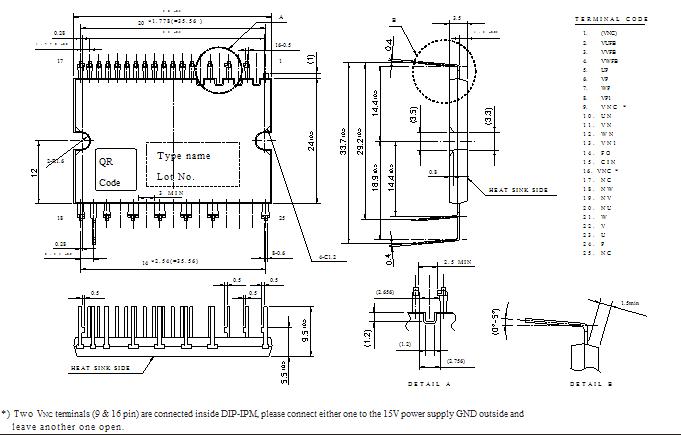

PS21963-4ES PACKAGE OUTLINES

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PS21963-4
PS21963-4

MOD IPM 600V 10A SUPERMINIDIP
Data Sheet
0-1: $14.52
1-10: $13.43
10-100: $11.47
100-250: $10.53
250-500: $10.02
500-1000: $9.44
1000-2500: $9.15
2500-5000: $8.93
5000-10000: $8.71
PS21963-4E
PS21963-4E

MOD IPM 600V 8A SUPERMINIDIP
Data Sheet
0-9: $13.85
PS21963-4ES
PS21963-4ES

MOD IPM 600V 8A SUPERMINIDIP
Data Sheet
0-9: $13.85
PS21963-4S
PS21963-4S

MOD IPM 600V 10A SUPERMINIDIP
Data Sheet
0-7: $18.65
PS21963-EST
PS21963-EST
Other

Data Sheet
Negotiable
PS21963-ET
PS21963-ET
Other

Data Sheet
Negotiable
PS21963-S
PS21963-S
Other

Data Sheet
Negotiable
PS21963-ST
PS21963-ST
Other

Data Sheet
Negotiable
