Product Summary
The PM75DSA120 is a Mitsubishi Intelligent Power Module. The PM75DSA120 is isolated base modules designed for power switching applications operating at frequencies to 20kHz. Built-in control circuits of the PM75DSA120 provide optimum gate drive and protection for the IGBT and free-wheel diode power devices. The applications of the PM75DSA120 include Inverters, UPS, Motion/Servo Control, Power Supplies.
Parametrics
PM75DSA120 absolute maximum ratings: (1)Power Device Junction Temperature, Tj: -20 to 150 ℃; (2)Storage Temperature, Tstg: -40 to 125 ℃; (3)Case Operating Temperature, TC: -20 to 100 ℃; (4)Mounting Torque, M4 Mounting Screws: 0.98 to 1.47 Nm; (5)Module Weight (Typical): 60 Grams; (6)Supply Voltage Protected by OC and SC: 400 Volts; (7)Isolation Voltage, Viso: 2500 Vrms.
Features
PM75DSA120 features: (1)Complete Output Power Circuit; (2)Gate Drive Circuit; (3)Protection Logic.

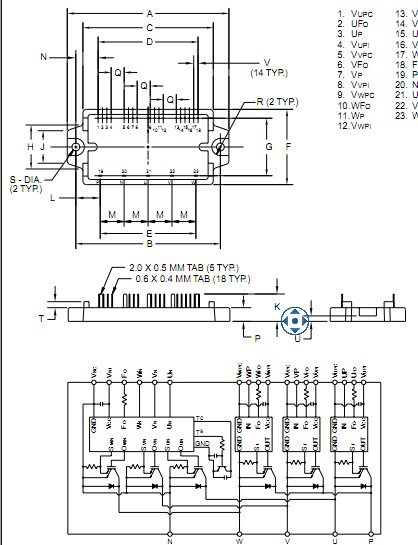

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() PM75DSA120 |
![]() |
![]() MOD IPM 3PHASE IGB HF 1200V 75A |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||||
