Product Summary

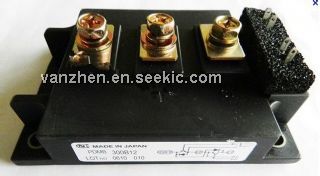

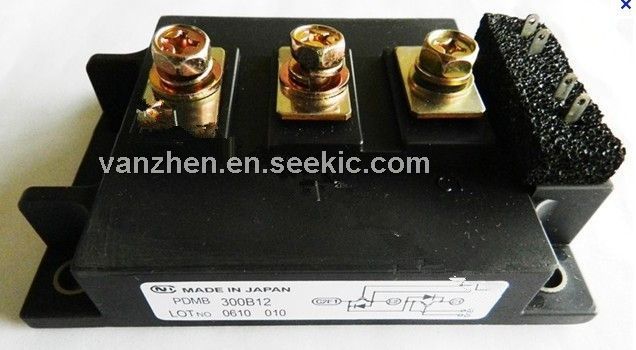

The PDMB300B12 is a Dual IGBT module.
Parametrics
PDMB300B12 absolute maximum ratings: (1)Collector-Emitter Voltage, VCES: 1200 V; (2)Gate-Emitter Voltage, VGES: ±20 V; (3)Collector Current, DC, IC: 300A, 1 ms, ICP: 600A; (4)Collector Power Dissipation, PC: 1600 W; (5)Junction Temperature Range, Tj: -40 to +150℃; (6)Storage Temperature Range, Tstg: -40 to +125℃; (7)Isolation Voltage Terminal to Base AC, 1 min.), VISO: 2500 V; (8)Mounting Torque, Module Base to Heatsink, Bus Bar to Main Terminals, FTOR: 3 N·m.
Features
PDMB300B12 features: (1)ollector-Emitter Cut-Off Current, ICES: VCE=1200V, VGE=0V: 6.0mA; (2)Gate-Emitter Leakage Current, IGES: VGE=+/- 20V, VCE=0V: 1.0μA; (3)Collector-Emitter Saturation Voltage VCE(sat): IC=300A,VGE=15V: 1.9 to 2.4V; (4)Gate-Emitter Threshold Voltage, VGE(th): VCE=5V,IC=300mA: 4.0 to 8.0V; (5)Input Capacitance, Cies: VCE=10V, VGE=0V, f=1MHz: 25000pF.

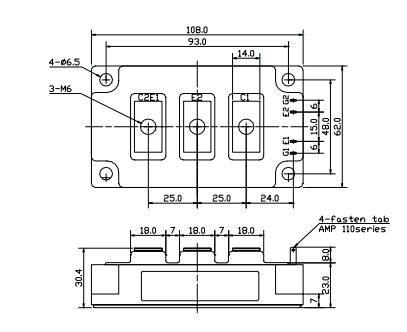

Diagrams
