Product Summary

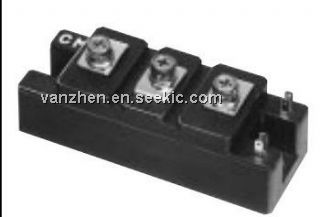

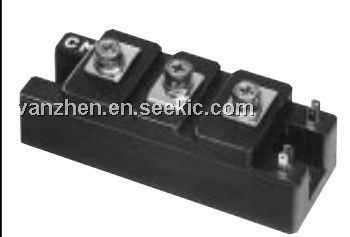

The cm75dy-24h is a Mitsubishi IGBT module is designed for use in switching applications. The cm75dy-24h consists of two IGBTs in a half bridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. Applications of the cm75dy-24h include: AC Motor Control, Motion/Servo Control, UPS and Welding Power Supplies.

Parametrics

cm75dy-24h absolute maximum ratings: (1) Junction Temperature Tj: -40 to 150°C; (2) Storage Temperature Tstg: -40 to 125°C; (3) Collector-Emitter Voltage (G-E SHORT) VCES: 1200V; (4) Gate-Emitter Voltage (C-E SHORT) VGES: ±20V; (5) Gate-Emitter Voltage (C-E Collector Current (T = 25°C) IC: 75mA; (6) Peak Collector Current ICM: 150mA; (7) Maximum Collector Dissipation (TC=25°C, Tj≤150°C) Pc: 600W; (8) Isolation Voltage (Main Terminal to Baseplate, AC 1 min.) Vsio: 2500 Vrms.

Features

cm75dy-24h features: (1) Low Drive Power; (2) Low VCE(sat) ; (3) Discrete Super-Fast Recovery Free-Wheel Diode; (4) High Frequency Operation; (5) Isolated Baseplate for Easy Heat Sinking.

Diagrams

CM75DY-24H Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CM75DY-24H
CM75DY-24H


IGBT MOD DUAL 1200V 75A H SER

Data Sheet

Negotiable
