Product Summary

The CM600DY-12NF is an IGBT module.

Parametrics

CM600DY-12NF absolute maximum ratings: (1)Collector-emitter voltage: 600V; (2)Gate-emitter voltage: ±20V; (3)Collector curretn: 600A at Tc=25℃; ICM: 1200A at pulse; (4)Emitter current: 600A at Tc=25℃; IEM: 1200A at pulse; (5)Maximum collector dissipation: 1130W at Tc=25℃; (6)Junction temperature: -40 to 150℃; (7)Storage temperature: -40 to 125℃; (8)Isolation voltage: 2500V; (9)Weight: 580g typ.

Features

CM600DY-12NF features: (1)IC: 600A; (2)VCES: 600V; (3)Insulated type; (4)2-lements in a pack.

Diagrams

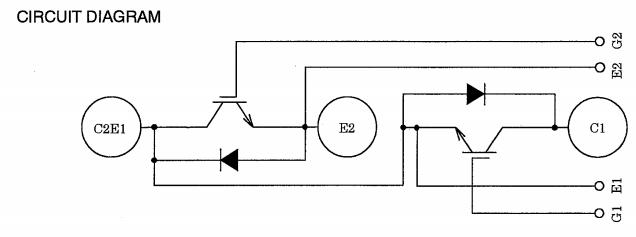

CM600DY-12NF pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CM600DY-12NF
CM600DY-12NF


IGBT MOD DUAL 600V 600A NF SER

Data Sheet

0-1: $152.36
1-10: $145.01
10-100: $136.60
100-250: $134.50
250-500: $131.35
500-1000: $126.09
