Product Summary

The CM600DU-24NFH is a semiconductor which is widely used for high frequency switching use (30kHz to 60kHz), gradient amplifier, induction heating, power supply, etc. Each CM600DU-24NFH module consists of two IGBT Transistors in a half-bridge configuration with each transistor having a reverseconnected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.

Parametrics

CM600DU-24NFH absolute maximum ratings: (1)Junction temperature: –40 to 150 ℃; (2)Storage temperature: –40 to 125 ℃; (3)Collector-emitter voltage (G-E short): 1200 Volts; (4)Gate-emitter voltage (C-E short): ±20 Volts; (5)Collector current (TC = 25℃): 600 Amperes; (6)Peak collector current:1200 Amperes; (7)Emitter current (TC = 25℃): 600 Amperes; (8)Peak emitter current: 1200 Amperes; (9)Maximum collector dissipation (TC = 25℃, Tj ≤ 150℃): 1550 Watts; (10)Maximum collector dissipation (TC = 25℃, Tj ≤ 150℃): 3700 Watts; (11)Isolation voltage (Main terminal to baseplate, AC 1 min.): 2500 Volts.

Features

CM600DU-24NFH features: (1)Low ESW; (2)Discrete super-fast recovery; (3)Free-wheel diode; (4)Isolated baseplate for easy; (5)Heat sinking.

Diagrams

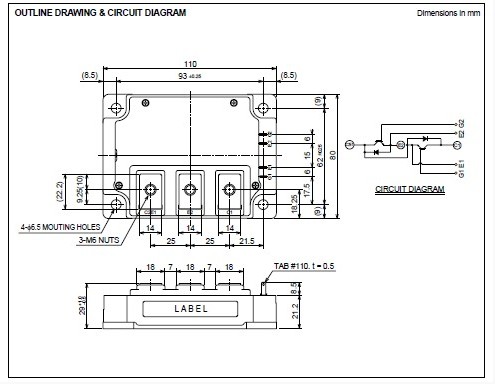

CM600DU-24NFH pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CM600DU-24NFH
CM600DU-24NFH


IGBT MOD DUAL 1200V 600A NFH SER

Data Sheet

0-1: $218.22
