Product Summary

The CM400DU-12NFH is a Powerex IGBTMOD Module. The CM400DU-12NFH is designed for use in switching applications. Each module consists of two IGBT Transistors in a halfbridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking base plate, offering simplified system assembly and thermal management. The applications of the CM400DU-12NFH include AC Motor Control, Motion/Servo Control, UPS, Welding Power Supplies, and Laser Power Supplies.

Parametrics

CM400DU-12NFH absolute maximum ratings: (1)Junction Temperature Tj: -40 to 150℃; (2)Storage Temperature Tstg: -40 to 125℃; (3)Collector-Emitter Voltage (G-E SHORT) VCES: 600 Volts; (4)Gate-Emitter Voltage (C-E SHORT) VGES: ±20 Volts; (5)Collector Current (Tc = 25℃) IC: 400 Amperes; (6)Peak Collector Current ICM: 800* Amperes; (7)Emitter Current (Tc = 25℃) IE: 400 Amperes; (8)Peak Emitter Current IEM: 800 Amperes; (9)Maximum Collector Dissipation (Tj<150℃) Pc: 960 Watts; (10)Maximum Collector Dissipation (Tj< 150℃) Pc: 1640 Watts.

Features

CM400DU-12NFH features: (1)Low Drive Power; (2)Low VCE(sat); (3)High Frequency Switching (50kHz to 60kHz); (4)Isolated Base Plate for Easy Heat Sinking.

Diagrams

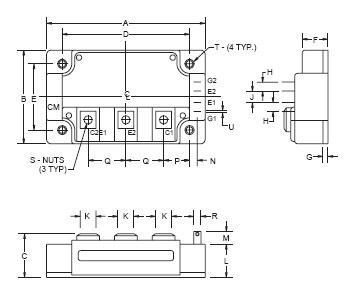

CM400DU-12NFH dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CM400DU-12NFH
CM400DU-12NFH


IGBT MOD DUAL 600V 400A NFH SER

Data Sheet

0-1: $122.22
1-10: $116.32
10-100: $109.57
100-250: $107.89
250-500: $105.36
500-1000: $101.15
