Product Summary

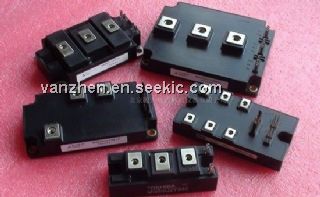

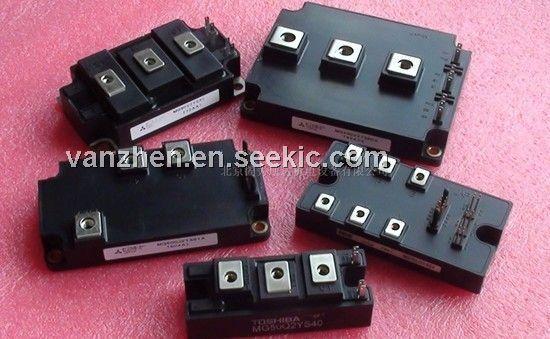

The CM300HA-24 is a Powerex IGBTMOD Module. It is designed for use in switching applications. The CM300HA-24 consists of one IGBT Transistor in a single configuration with a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. The applications of the CM300HA-24 are AC Motor Control, Motion/Servo Control, UPS, Welding Power Supplies, Laser Power Supplies.
Parametrics
CM300HA-24 absolute maximum ratings: (1)Junction Temperature: -40 to 150℃; (2)Storage Temperature: -40 to 125℃; (3)Collector-Emitter Voltage (G-E SHORT): 1200Volts; (4)Gate-Emitter Voltage: ±20Volts; (5)Collector Current: 300Amperes; (6)Peak Collector Current: 600Amperes; (7)Diode Forward Current: 300Amperes; (8)Diode Forward Surge Current: 600Amperes; (9)Power Dissipation: 2100Watts; (10)Max. Mounting Torque M6 Terminal Screws: 26in-lb; (11)Max. Mounting Torque M6 Mounting Screws: 26in-lb; (12)Module Weight (Typical): 400Grams; (13)V Isolation: 2500Volts.
Features
CM300HA-24 features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery(70ns) Free-Wheel Diode; (4)High Frequency Operation(20-25kHz); (5)Isolated Baseplate for Easy Heat Sinking.
Diagrams
