Product Summary
The CM200DY-28K is a Mitsubishi IGBT module. It is designed for use in switching applications. Each the CM200DY-28K consists of two IGBTs in a half-bridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. Applications are (1)AC motor control; (2)Motion/servo control; (3)UPS; (4)Welding power supplies.
Parametrics
CM200DY-28K absolute maximum ratings: (1)Junction temperature Tj: –40 to 150 °C; (2)Storage temperature Tstg: –40 to 125 °C; (3)Collector-emitter voltage (G-E short)VCES: 1400 Volts; (4)Gate-emitter voltage (C-E short)VGES: ±20 Volts; (5)Collector current (TC = 25°C)IC: 200 Amperes; (6)Peak collector current ICM: 400 Amperes; (7)Emitter current (TC = 25°C)IE: 200 Amperes; (8)Peak emitter current IEM : 00 Amperes; (9)Maximum collector dissipation (TC = 25°C, Tj ≤ 150°C)Pc: 1500 Watts; (10)Mounting torque, M6 main terminal: 1.96 to 2.94 N · m; (11)Mounting torque, M6 mounting: 1.96 to 2.94 N · m; (12)Weight: 400 Grams; (13)Isolation voltage (main terminal to baseplate, AC 1 min.)Viso: 2500 Vrms.
Features
CM200DY-28K features: (1)Low drive power; (2)Low VCE(sat); (3)Discrete super-fast recovery free-wheel diode; (4)High frequency operation; (5)Isolated baseplate for easy heat sinking.

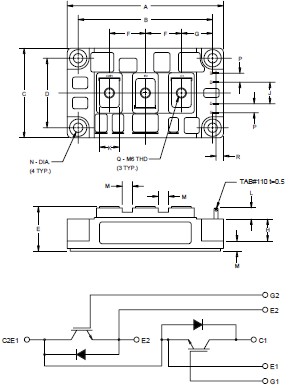

Diagrams
