Product Summary
The CM200DY-24E is an IGBT module. The device is designed for use in switching applications. The CM200DY-24E consists of two IGBTs in a half-bridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. The applications of the CM200DY-24E include AC motor control, motion/servo control, UPS and welding power supplies.
Parametrics
CM200DY-24E absolute maximum ratings: (1)Junction temperature, Tj: -40 to 150℃; (2)Storage temperature, Tstg: -40 to 125℃; (3)Collector-emitter voltage (G-E short), VCES: 1200 Volts; (4)Gate-emitter voltage (C-E short), VGES: ±20 Volts; (5)Collector current (TC = 25℃), IC: 200 Amperes; (6)Peak collector current, ICM: 400 Amperes; (7)Emitter current (TC = 25℃), IE: 200 Amperes; (8)Peak emitter current, IEM: 400 Amperes; (9)Maximum collector dissipation (TC = 25℃, Tj ≤ 150℃), Pc: 1500 Watts; (10)Mounting torque, M6 main terminal: -1.96 to 2.94 Nm; (11)Mounting torque, M6 mounting: -1.96 to 2.94 Nm; (12)Weight: -400 Grams; (13)Isolation voltage (main terminal to baseplate, AC 1 min.), Viso: 2500 Vrms.
Features
CM200DY-24E features: (1)Low drive power; (2)Low VCE(sat); (3)Discrete super-fast recovery free-wheel diode; (4)High frequency operation; (5)Isolated baseplate for easy heat sinking.

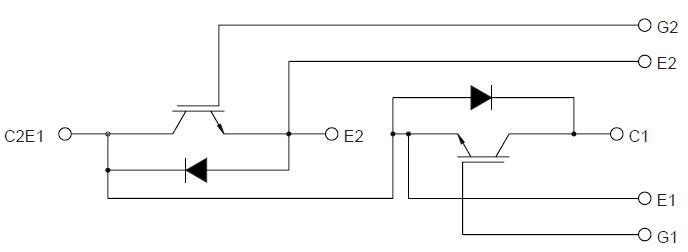

Diagrams
