Product Summary

The cm200dy-24a is a Mitsubishi IGBT module. Applications of the cm200dy-24a include: AC drive inverters & Servo controls, etc.

Parametrics

cm200dy-24a absolute maximum ratings: (1) Collector-emitter voltage VCES: 1200V (G-E short) ; (2) Gate-emitter voltage VGES: ±20V (C-E short) ; (3) Collector current IC: 200A (DC, 84°C) ; (4) ICM: 400A (Pulse) ; (5) Emitter current IE: 200A; (6) IEM: 400A (Pulse) ; (7) Maximum collector dissipation Pc: 1340W (Tc=25°C) ; (8) Junction temperature Tj: -40 to +150°C; (9) Storage temperature Tstg: -40 to +125°C; (10) Isolation voltage Viso: 2500Vrms.

Features

cm200dy-24a features: (1) Ic: 200A; (2) VCES: 1200V; (3) Insulated Type; (4) 2-elements in a pack.

Diagrams

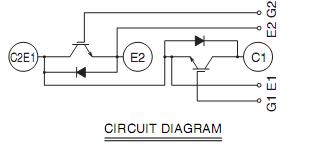

cm200dy-24a circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CM200DY-24A
CM200DY-24A


IGBT MOD DUAL 1200V 200A A SER

Data Sheet

Negotiable
