Product Summary

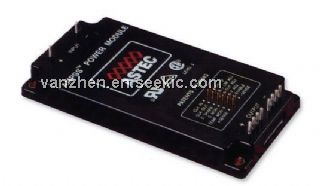

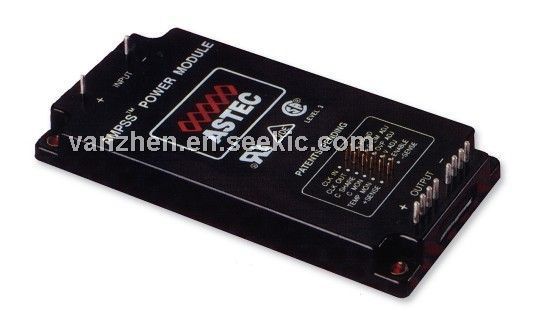

The AM80A-300L-120F18 is a 18A Astec Integrated Power Module.

Parametrics

AM80A-300L-120F specifications: (1)Voltage Adjust: 80 to 120% Vo linear programming; (2)Enable: TTL compatible (low to enable); (3)Current Limit Adjust: 20 to 100% Io linear programming; (4)Clock Input(external sync): 3.3 to 5.5Vp-p @ 1MHz ± 10%; (5)Clock Output(internal clock): 4.5Vp-p typical@ 1MHz ± 0.5%; (6)Power Good Identification: High (Vo) = power good; (7)Temperature Monitor Output: 10 mV/°K (2.73V = 0℃); (8)Current Monitor Output: 0 to 1mA (1 mA = 100% Io rated); (9)Over Voltage Protection Adjust: 110 to 150% Vo linear programming by voltage or resistor.

Features

AM80A-300L-120F features: (1)1MHz Fixed frequency; (2)100℃ Baseplate operating temperature(no derating); (3)Low output ripple and noise; (4)Excellent transient response; (5)Safety isolated low voltage interface with ALP linear control; (6)High reliability - over 1 million hours MTBF; (7)Wide input voltage range; (8)Parallelable with accurate current sharing; (9)Current and temperature monitoring outputs.

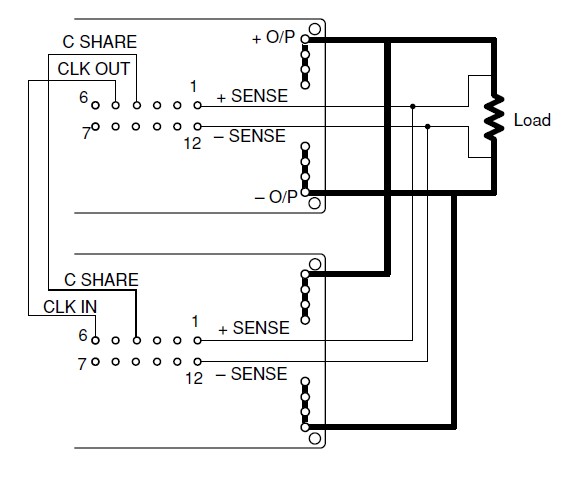

Diagrams

AM80A-300L-120F package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AM80A-300L-120F18
AM80A-300L-120F18


CONV DC-DC 240W 300VIN 12.0V 18A

Data Sheet

Negotiable
