Product Summary

The 6MBI75J-060 is an IGBT module for inverter for motor drive, AC-DC servo drive amplifier, uninterruptible power supply.

Parametrics

6MBI75J-060 absolute maximum ratings: 1)VCES: 600V; (2)VGES: ±20V; (3)IC: 75A; (4)ICpulse: 150A; (5)-IC: 75A; (6)-Icpulse: 150A; (7)PC: 245W; (8)TJ: 150℃; (9)TSTG: -40 to 125℃; (10)Viso: 2500V; (11)mouting: 3.5N.m; (12)terminals: 1.7 N.m.

Features

6MBI75J-060 features: (1)Low saturation voltage; (2)Voltage drive; (3)Variety of power capacity series.

Diagrams

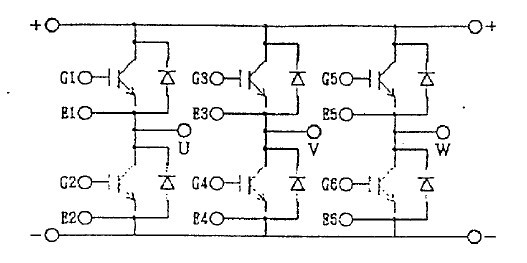

6MBI75J-060 pin connection
