Product Summary
The 6MBI150FA-060S is an IGBT module. The applications of it include Inverter for motor drive, AC.DC servo drive amplifier, Uninterruptible power supply, Industrial machines, such as welding machines.
Parametrics
6MBI150FA-060S absolute maxing ratings: (1)VCES: 600V; (2)VGES: ±20V; (3)IC: 150A; (4)IC pulse: 300A; (5)-IC: 150A; (6)-IC pulse: 300A; (7)Pc: 450W; (8)Tj: +150℃; (9)Tstg: -40~+125℃; (10)m: 450g; (11)Viscl: 2500V; (12)Mounting*1: 3.5N.m; (13)Terminal*1: 3.5N.m.
Features
6MBI150FA-060S features: (1)Low saturation voltage; (2)Voltage drive; (3)Variety of power capacity series.

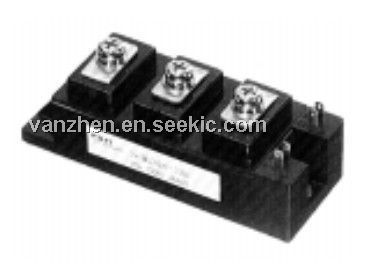

Diagrams
