Product Summary

The 2MBI400U2B-060 is an IGBT module. Its applications include inverter for motor drive, AC and DC servo drive amplifier, uninterrupible power supply, industrial machines, such as welding machines.

Parametrics

2MBI400U2B-060 absolute maximum ratings: (1)Collector-emitter voltage: 650V; (2)Gate-emitter voltage: ±20V; (3)Collector current: 400A; (4)Collector power dissipation: 1250W; (5)Junction temperature: 150℃; (6)Storage temperature: -40 to 125℃.

Features

2MBI400U2B-060 features: (1)High speed swiching; (2)Voltage drive; (3)Low inductance module structure.

Diagrams

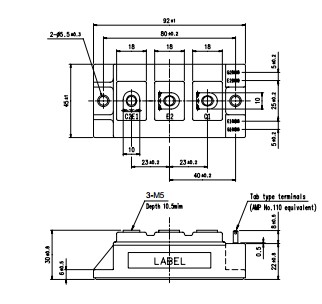

2MBI400U2B-060 pin connection
