Product Summary
The 2MBI400K-060 is an IGBT module. Applications are (1)Inverter for motor drive; (2)AC and DC servo drive amplifier; (3)Uninterruptible power supply; (4)Industrial machines, such as welding machines.
Parametrics
2MBI400K-060 absolute maximum ratings: (1)Collector-emitter voltage VCES: 600 V; (2)Gate-emitter voltage VGES: ±20 V; (3)Collector current IC continuous TC=80°C: 400 A; IC pulse 1ms: 800 A; -IC: 400 A; -IC pulse 1ms: 800 A; (4)Collector power dissipation PC 1 device: 1600 W; (5)Operating temperature Tj: +150 °C; (6)Storage temperature Tstg: -40 ~ 125 °C; (7)Isolation voltage AC : 1min: 2500 V; (10)Screw torque mounting : 3..5 N m; Termlnals: 4.5 N m.
Features
2MBI400K-060 features: (1)High speed switching; (2)Voltage drive; (3)Low saturation voltaga.

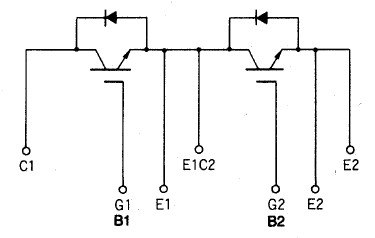

Diagrams
