Product Summary
The 2MBI200NB-060 is an IGBT module suitable for high power switching, A.C. Motor controls, D.C. Motor controls and uninterruptible power supply.
Parametrics
2MBI200NB-060 absolute maximum ratings: (1)Collector-emitter voltage, VCES: 1200 V; (2)Gate -emitter voltage, VGES: ± 20 V; (3)Collector current, Continuous, IC: 200A; 1ms, IC PULSE: 400A; continuous, -IC: 200A; 1ms, -IC PULSE: 400A; (4)Max. Power dissipation, PC: 1500 W; (5)Operating temperature, Tj: +150℃; (6)Storage temperature, Tstg: -40 ～ +125℃; (7)Isolation voltage A.C. 1min., Vis: 2500 V.
Features
2MBI200NB-060 features: (1)Square RBSOA; (2)Low saturation voltage; (3)Less total power dissipation; (4)Improved FWD characteristic; (5)Minimized internal stray inductance; (6)Overcurrent limiting function (4~5 times rated current).

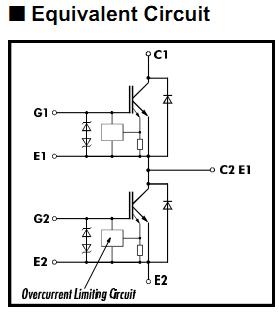

Diagrams
