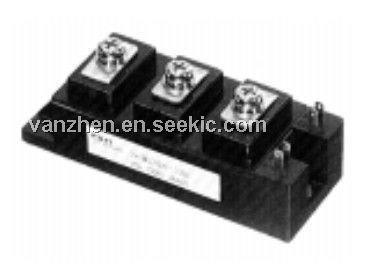

Product Summary

The 2MBI150NT-120A is an IGBT module. The applications of the 2MBI150NT-120A include high power switching, A.C motor controls, D.C motor controls, uninterruptible power supply.

Parametrics

2MBI150NT-120A absolute maximum ratings: (1)Collector-emitter voltage: 1200 V; (2)Gate -emitter voltage: ± 20 V; (3)Continuous IC 150; (4)Collector current: 150 A; (5)Max. power dissipation: 1100 W; (6)Operating temperature: +150 ℃; (7)Storage temperature: -40 ~ +125 ℃; (8)Isolation voltage A.C. 1min.: 2500 V.

Features

2MBI150NT-120A features: (1)Square RBSOA; (2)Low saturation voltage; (3)Less total power dissipation; (4)Improved FWD characteristic; (5)Minimized internal stray inductance; (6)Overcurrent limiting function (4~5 times rated current).

Diagrams

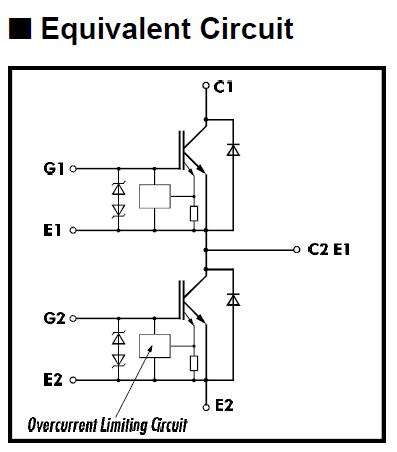

2MBI150NT-120A pin connection
