Product Summary
The 2MBI100PK-120 is an IGBT module. The applications of the 2MBI100PK-120 include high power switching, A.C. motor controls, D.C. motor controls and uninterruptible power supply.
Parametrics
2MBI100PK-120 absolute maximum ratings: (1)Collector-emitter voltage : 1200 V; (2)Gate -emitter voltage : ± 20 V; (3)Collector current: 200A; (4)Max. power dissipation : 780 W; (5)Operating temperature : +150 ℃; (6)Storage temperature : -40 ~ +125 ℃; (7)Isolation voltage: 2500 V.
Features
2MBI100PK-120 features: (1)Square RBSOA; (2)Low saturation voltage; (3)Less total power dissipation; (4)Improved FWD characteristic; (5)Minimized internal stray inductance; (6)Over current limiting function (4~5 times rated current).

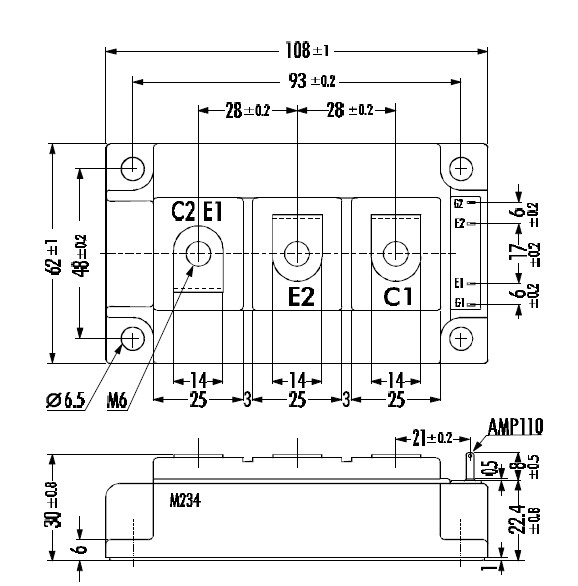

Diagrams
